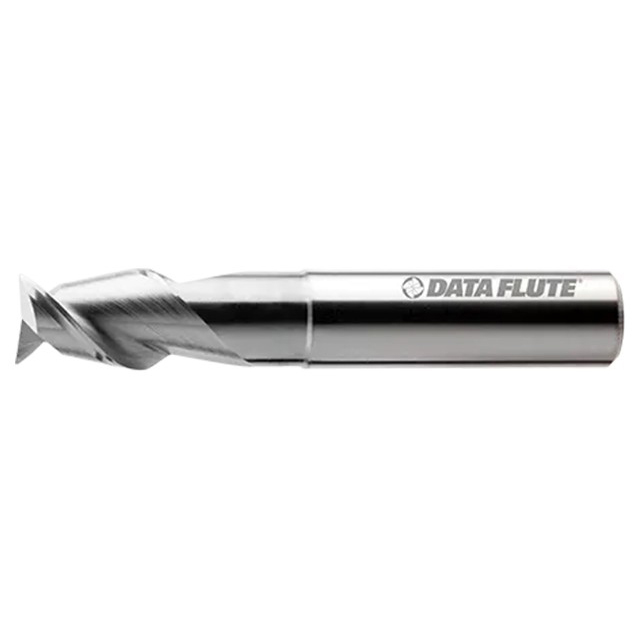

Data Flute 39664-89-D | HSMM20625 1/2" Diameter x 1/2" Shank x 5/8" LOC x 4" OAL C5 Coated Square End Mill

$180.90 $162.81
(You save $18.09)
Brand:
Data Flute
Diameter (Inch):
1/2"
Shank Diameter (Inch):
1/2"
Length of Cut (Inch):
5/8"
Overall Length (Inch):
4"
Finish/Coating:
C5
Length of Cut (Decimal Inch):
0.7500"
interval quantity:
1
SKU:
25296917
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Data Flute 39664-89-D | HSMM20625 1/2" Diameter x 1/2" Shank x 5/8" LOC x 4" OAL C5 Coated Square End Mill

The HSM is a 2 flute rougher/finisher that uses the geometries of the ARF series and couples them with an extended reach design. The stub flute length, in conjunction with a wide range of reach lengths, makes the HSM series a great choice for roughing in aluminum and other non-ferrous materials in hard to reach depths of cuts.

Features:

  • High Performance Carbide
  • Periphery and Pocketing Operations
  • Reduced Neck for Reach and Stability
  • High Helix for Chip Removal

Product Specifications
Manufacturer Part NumberHSMM20625
Diameter (Inch)1/2"
Shank Diameter (Inch)1/2"
Length of Cut (Inch)5/8"
Overall Length (Inch)4"
CoatingC5
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
