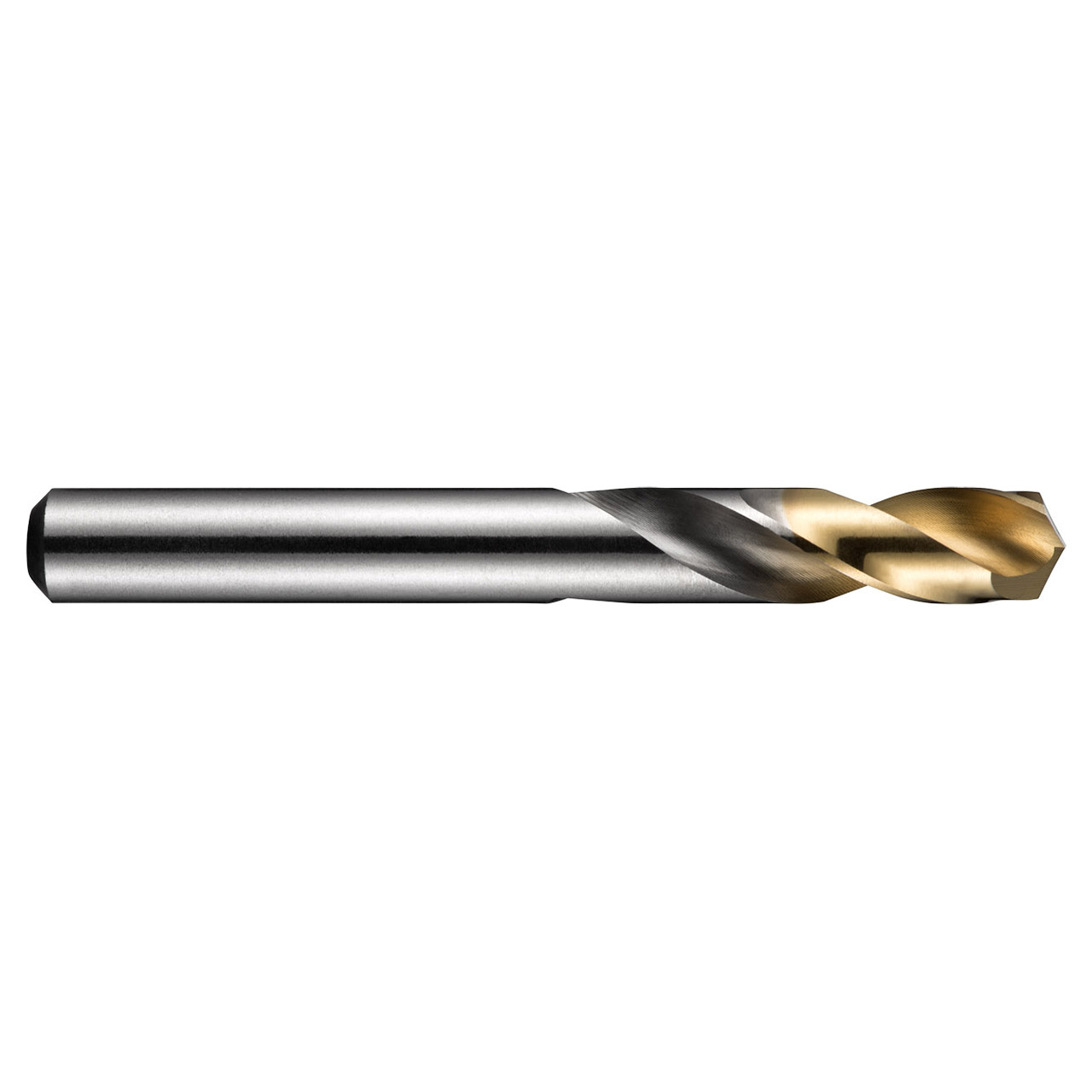

Dormer A02215/64 | 0.2344" Diameter x 2.4803" OAL Bright/TiN Coated Screw Machine Length Drill Bit

$4.88
Brand:
Dormer
Drill Bit Size (Inch):
15/64"
Drill Bit Size (Decimal Inch):
0.2344"
Drill Bit Size (mm):
5.95mm
Drill Point Angle:
135°
Flute Length (Inch):
1-11/32"
Flute Length (Decimal Inch):
1.3400"
Flute Length (mm):
34mm
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63mm
Material:
HSS
Finish/Coating:
Bright/TiN
Cutting Direction:
Right Hand
SKU:
10111703
Weight:
0.36 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

A022 stub drills are very versatile and are suitable for a wide variety of hand held and machine applications. They are manufactured from premium high speed steel and can be used for drilling a number of different materials including steels, stainless steels and aluminium. With a titanium nitride coating, you get better performance when drilling harder materials and a longer tool life. The specially designed 135° split point is a great aid to self-centering when drilling by hand-so no more wandering all over the surface of the workpiece-and you also get a more accurate hole with a better quality of finish.


Product Specifications
EDP Number0589069
Usable Length2.5
Connection Diameter (Inch)0.2343"
Cutting Diameter (Inch)0.2344"
Overall Length (Inch)2.4803"
Point Angle135
Material CodeHSS
Drill LengthStub
Cutting DirectionRight Hand
CoatingBright/TiN
Surface ColorBright & Gold

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Dormer
Drill Bit Size (Inch):
15/64"
Drill Bit Size (Decimal Inch):
0.2344"
Drill Bit Size (mm):
5.95mm
Drill Point Angle:
135°
Flute Length (Inch):
1-11/32"
Flute Length (Decimal Inch):
1.3400"
Flute Length (mm):
34mm
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63mm
Material:
HSS
Finish/Coating:
Bright/TiN
Cutting Direction:
Right Hand
