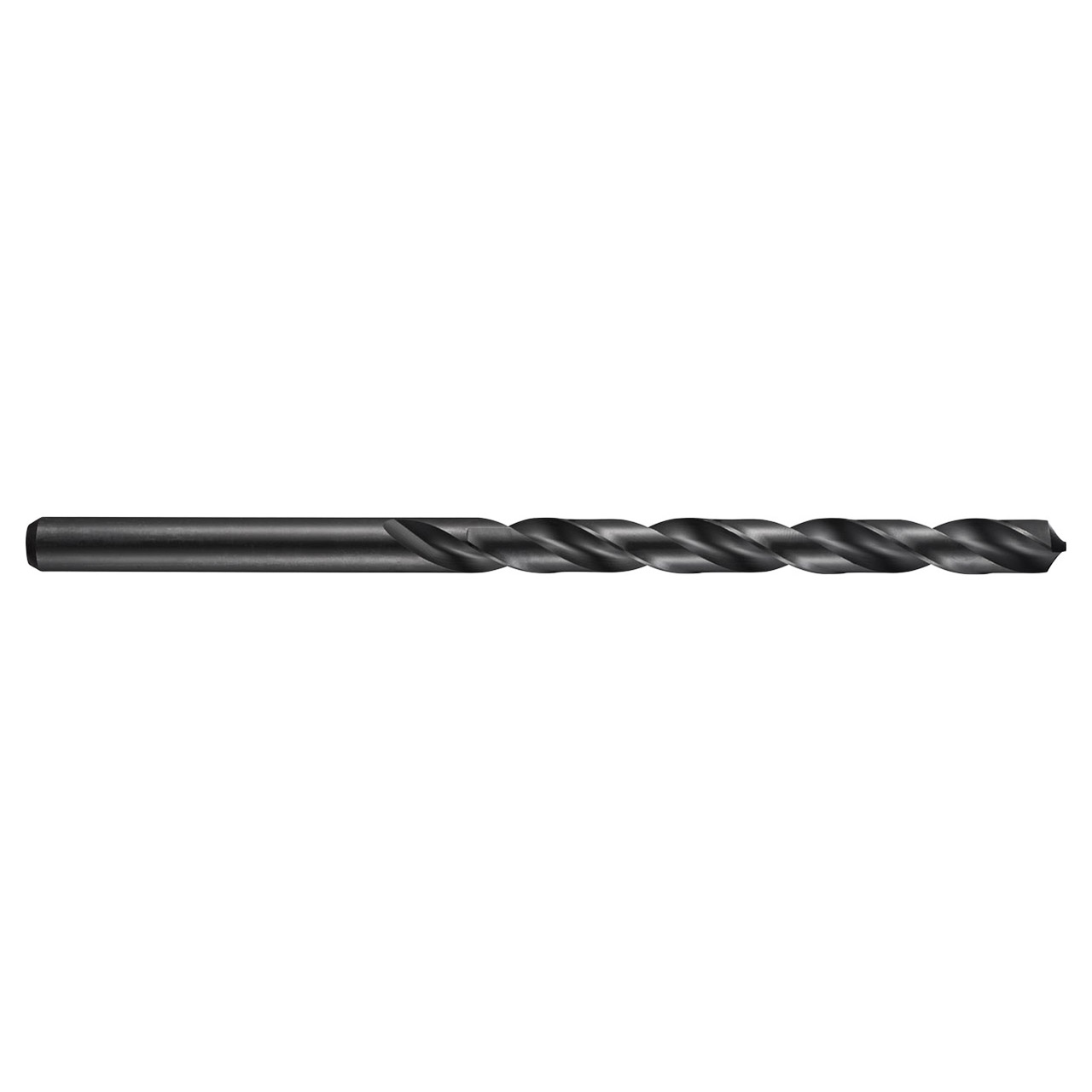

Dormer A1104.0 | 0.1575" Diameter x 4.685" OAL Steam Tempered Coated Taper Length Drill Bit

$8.48
Brand:
Dormer
Drill Bit Size (Inch):
5/32"
Drill Bit Size (Decimal Inch):
0.1575"
Drill Bit Size (mm):
4mm
Flute Length (Inch):
3-5/64"
Flute Length (Decimal Inch):
3.0700"
Flute Length (mm):
78mm
Overall Length (Inch):
4-11/16"
Overall Length (Decimal Inch):
4.6850"
Overall Length (mm):
119mm
Drill Point Angle:
118°
Finish/Coating:
Steam Tempered
Material:
HSS
SKU:
10107302
UPC:
7320760011249
Weight:
0.36 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

The A110 drill from Dormer gives you the extra length you need to drill deeper holes or more reach for those awkward jobs. Suitable for both hand held and machine drilling in a number of applications, the A110 from Dormer Pramet has a steam oxide finish which helps stop work piece material from sticking to the cutting edge of the drill. A conventional 118° point provides strength and means the point is easy to regrind, making it a very cost-effective drill. The A110 is suitable for drilling deeper holes in many materials including steels, aluminium and stainless steels, giving you the extra reach you sometimes need. The A110 is a good choice for getting to the bottom of things.


Product Specifications
EDP Number0011249
Usable Length6
Connection Diameter (Inch)0.1575"
Cutting Diameter (Inch)0.1575"
Overall Length (Inch)4.685"
Point Angle118
Material CodeHSS
Drill LengthLong
Cutting DirectionRight Hand
CoatingSteam Tempered
Surface ColorBlack

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Dormer
Drill Bit Size (Inch):
5/32"
Drill Bit Size (Decimal Inch):
0.1575"
Drill Bit Size (mm):
4mm
Flute Length (Inch):
3-5/64"
Flute Length (Decimal Inch):
3.0700"
Flute Length (mm):
78mm
Overall Length (Inch):
4-11/16"
Overall Length (Decimal Inch):
4.6850"
Overall Length (mm):
119mm
Drill Point Angle:
118°
Finish/Coating:
Steam Tempered
Material:
HSS
