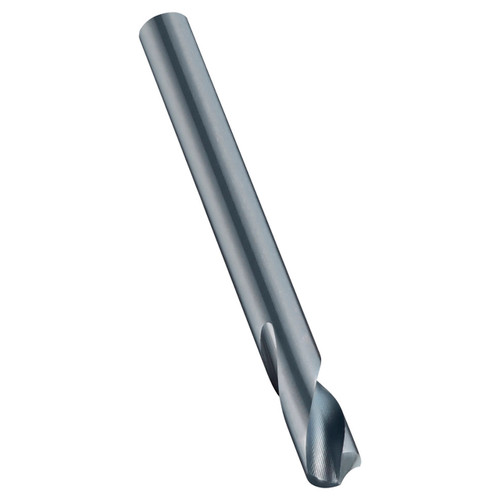

Dormer A1233.3S | 0.1299" Diameter x 1.9291" OAL Steam Tempered Coated Stub Drill

$1.49
Brand:
Dormer
Drill Bit Size (Inch):
1/8"
Drill Bit Size (Decimal Inch):
0.1299"
Drill Bit Size (mm):
3.3mm
Drill Point Angle:
120°
Overall Length (Inch):
1-59/64"
Overall Length (Decimal Inch):
1.9291"
Overall Length (mm):
49mm
Material:
HSS
Finish/Coating:
Steam Tempered
SKU:
10113861
UPC:
7320760707838
Weight:
0.11 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Dormer's A123 short drill in both fractional and metric sizes is specially designed for drilling thin materials and sheet metal. Manufactured from high speed steel, it is suitable for drilling in many materials including steels, stainless steels and aluminium. The drill has a 120° point and a steam oxide finish which stops workpiece material from sticking to the cutting edge of the drill, giving you a better hole finish and more accurate diameter. The core of the A123 is thinner than normal which helps reduce the amount of force needed when drilling. A final design feature is the absence of any body clearance on the drill which improves hole roundness when drilling thin material.


Product Specifications
EDP Number47189766
Usable Length1.5
Connection Diameter (Inch)0.1299"
Cutting Diameter (Inch)0.1299"
Overall Length (Inch)1.9291"
Point Angle120
Material CodeHSS
Drill LengthStub
Cutting DirectionRight Hand
CoatingSteam Tempered
Surface ColorBlack
