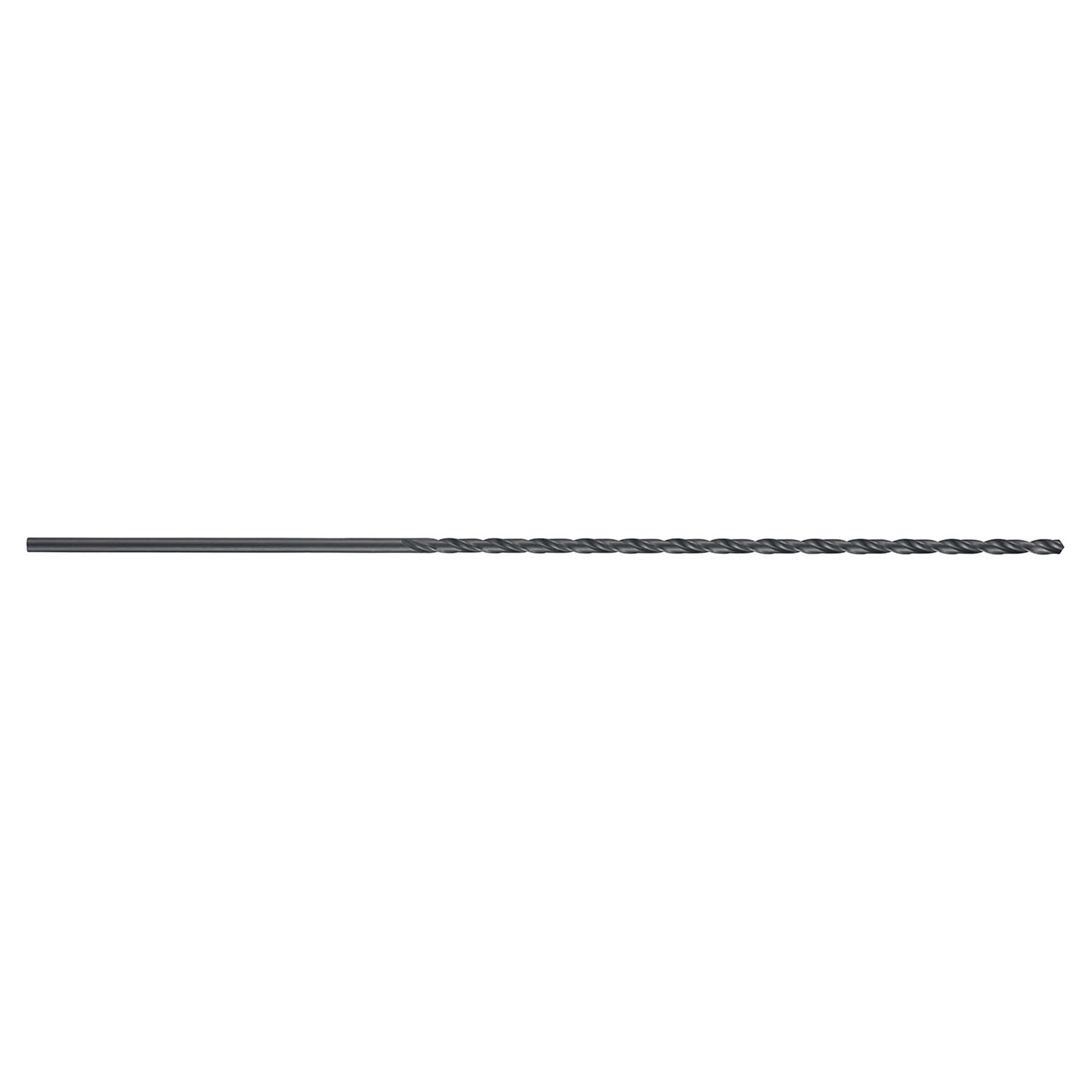

Dormer A1252.2X160 | 0.0866" Diameter x 6.2992" OAL Steam Tempered Coated Extra Long Drill Bit

$31.10
Brand:
Dormer
Drill Bit Size (Inch):
3/32"
Drill Bit Size (Decimal Inch):
0.0866"
Drill Bit Size (mm):
2.2mm
Material:
HSS
Finish/Coating:
Steam Tempered
Overall Length (Inch):
6-19/64"
Overall Length (Decimal Inch):
6.2992"
Overall Length (mm):
160mm
Drill Point Angle:
118°
SKU:
10107913
UPC:
7320760020036
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

The A125 drill from Dormer is classed as an extra long drill and is recommended for very deep holes and applications where the hole to be drilled is difficult to reach. The A125 has a conventional 118° point, providing strength and saving money on easy regrinds. A steam oxide finish helps stop work piece material from sticking to the cutting edge of the drill. The A125 is manufactured from premium high speed steel and can be used in a variety of applications on a number of different materials, including steels, aluminium and stainless steels.


Product Specifications
EDP Number0020036
Usable Length10
Connection Diameter (Inch)0.0866"
Cutting Diameter (Inch)0.0866"
Overall Length (Inch)6.2992"
Point Angle118
Material CodeHSS
Drill LengthExtra Length
Cutting DirectionRight Hand
CoatingSteam Tempered
Surface ColorBlack
