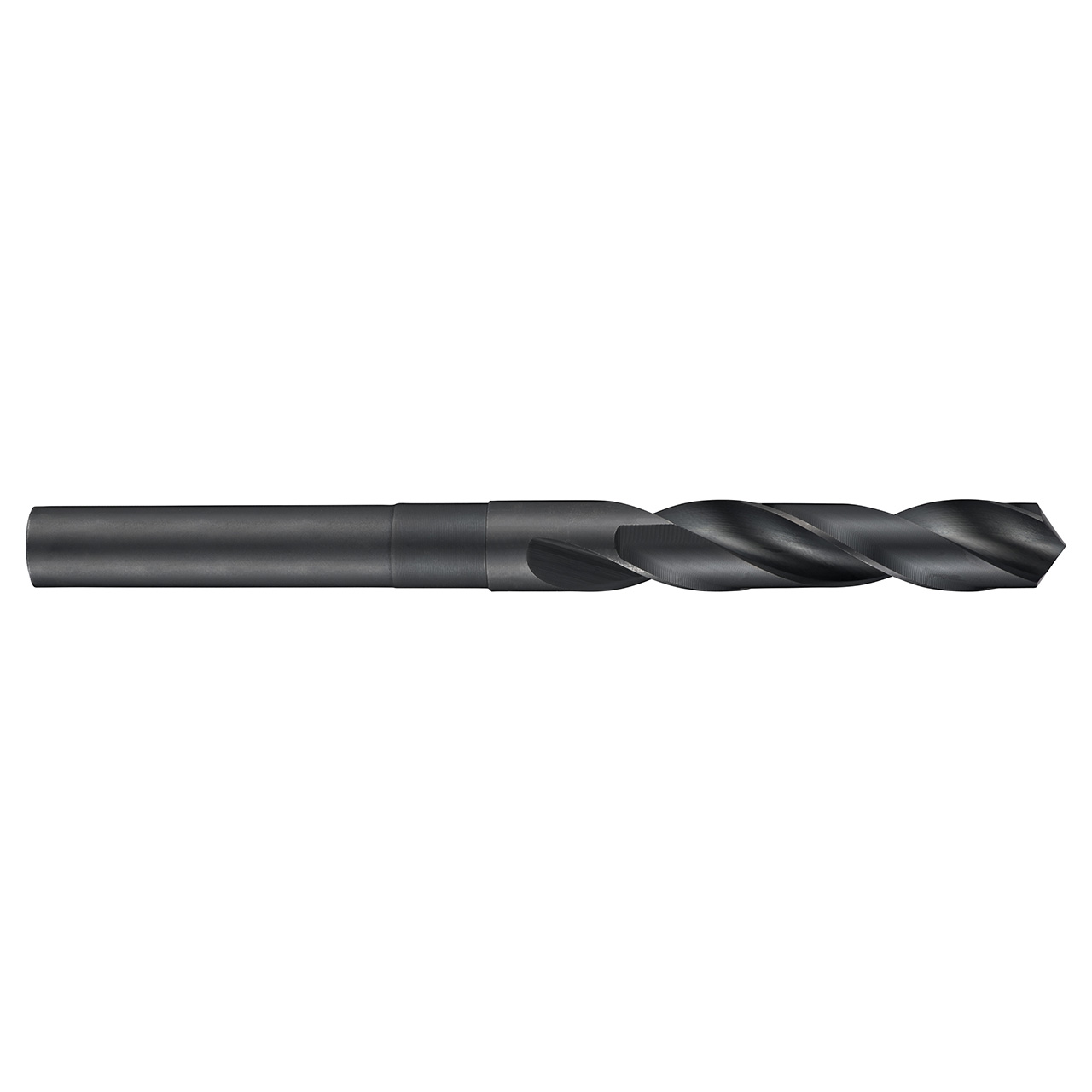

Dormer A1701.1/8 | 1.125" Diameter x 6" OAL Steam Tempered Coated Reduced Shank Drill Bit

$87.30
Brand:
Dormer
Drill Bit Size (Inch):
1-1/8"
Drill Bit Size (Decimal Inch):
1.1250"
Drill Bit Size (mm):
28.58mm
Drill Point Angle:
118°
Material:
HSS
Finish/Coating:
Steam Tempered
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.4mm
SKU:
10110533
UPC:
7320760172759
Weight:
13.69 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The A170 drill comes in a range of fractional and metric diameters. However, regardless of the cutting diameter, all A170 drills come with a ½ inch parallel shank. This means drills with a large cutting diameter can still be clamped in conventional, hand held power tools. The A170 is manufactured from premium high speed steel making it suitable for drilling many materials, including steels, stainless steels and aluminium and comes with a conventional 118° point, providing strength and making regrinding easy. It has a steam oxide finish to stop work piece material from sticking to the cutting edge of the tool. The A170 ½ inch parallel shank drill can be used in many different hand held and machine applications.


Product Specifications
EDP Number0172759
Usable Length4
Connection Diameter (Inch)0.5"
Cutting Diameter (Inch)1.125"
Overall Length (Inch)6"
Point Angle118
Material CodeHSS
Drill LengthStandard
Cutting DirectionRight Hand
CoatingSteam Tempered
Surface ColorBlack
