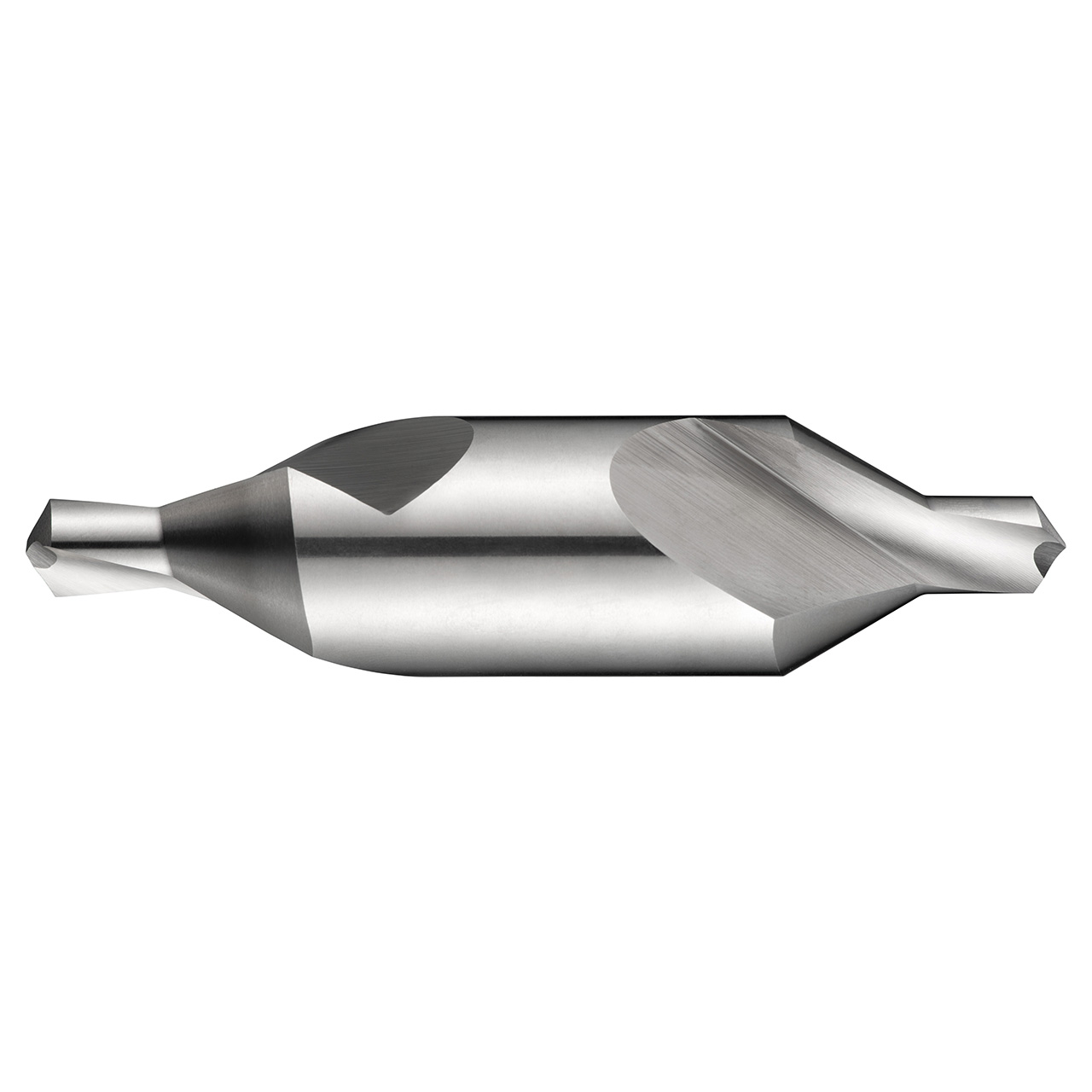

Dormer A2005.0X12.5 | 0.1969" Diameter x 2.4803" OAL Bright Coated Combination Drill & Countersink

$27.32
Brand:
Dormer
Drill Point Diameter (Inch):
13/64"
Drill Point Diameter (Decimal Inch):
0.1969"
Drill Point Diameter (mm):
5mm
Included Angle:
118°
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63mm
SKU:
10108528
UPC:
7320760030783
Weight:
1.52 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Centre drill (combined drill and countersink) with 60° straight conical form, single ended and cylindrical body, 5.00mm drill diameter, a body diameter of 12.50mm and an overall length of 63mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron.


Product Specifications
EDP Number0030783
Usable Length1
Connection Diameter (Inch)0.4921"
Cutting Diameter (Inch)0.1969"
Overall Length (Inch)2.4803"
Point Angle118
Material CodeHSS
Drill LengthShort
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Dormer
Drill Point Diameter (Inch):
13/64"
Drill Point Diameter (Decimal Inch):
0.1969"
Drill Point Diameter (mm):
5mm
Included Angle:
118°
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63mm
