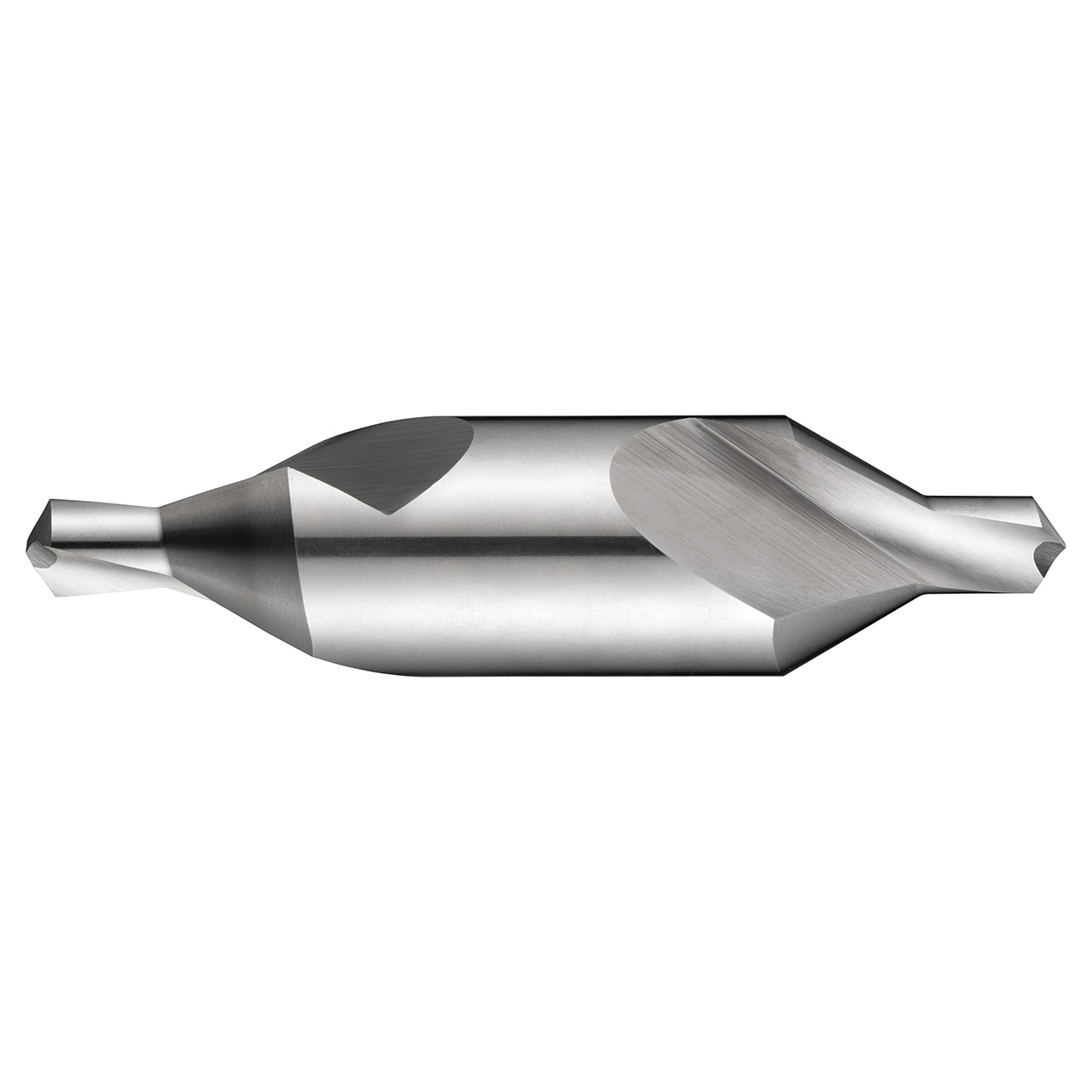

Centre drill (combined drill and countersink) with 60° straight conical form, single ended and cylindrical body, 6.30mm drill diameter, a body diameter of 16.00mm and an overall length of 71mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron.
Product Specifications
| EDP Number | 0030790 |
| Usable Length | 1 |
| Connection Diameter (Inch) | 0.6299" |
| Cutting Diameter (Inch) | 0.248" |
| Overall Length (Inch) | 2.7953" |
| Point Angle | 118 |
| Material Code | HSS |
| Drill Length | Short |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Drill Point Diameter (Inch):
1/4"
Drill Point Diameter (Decimal Inch):
0.2480"
Drill Point Diameter (mm):
6.3mm
Included Angle:
118°
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Overall Length (Inch):
2-51/64"
Overall Length (Decimal Inch):
2.7953"
Overall Length (mm):
71mm
