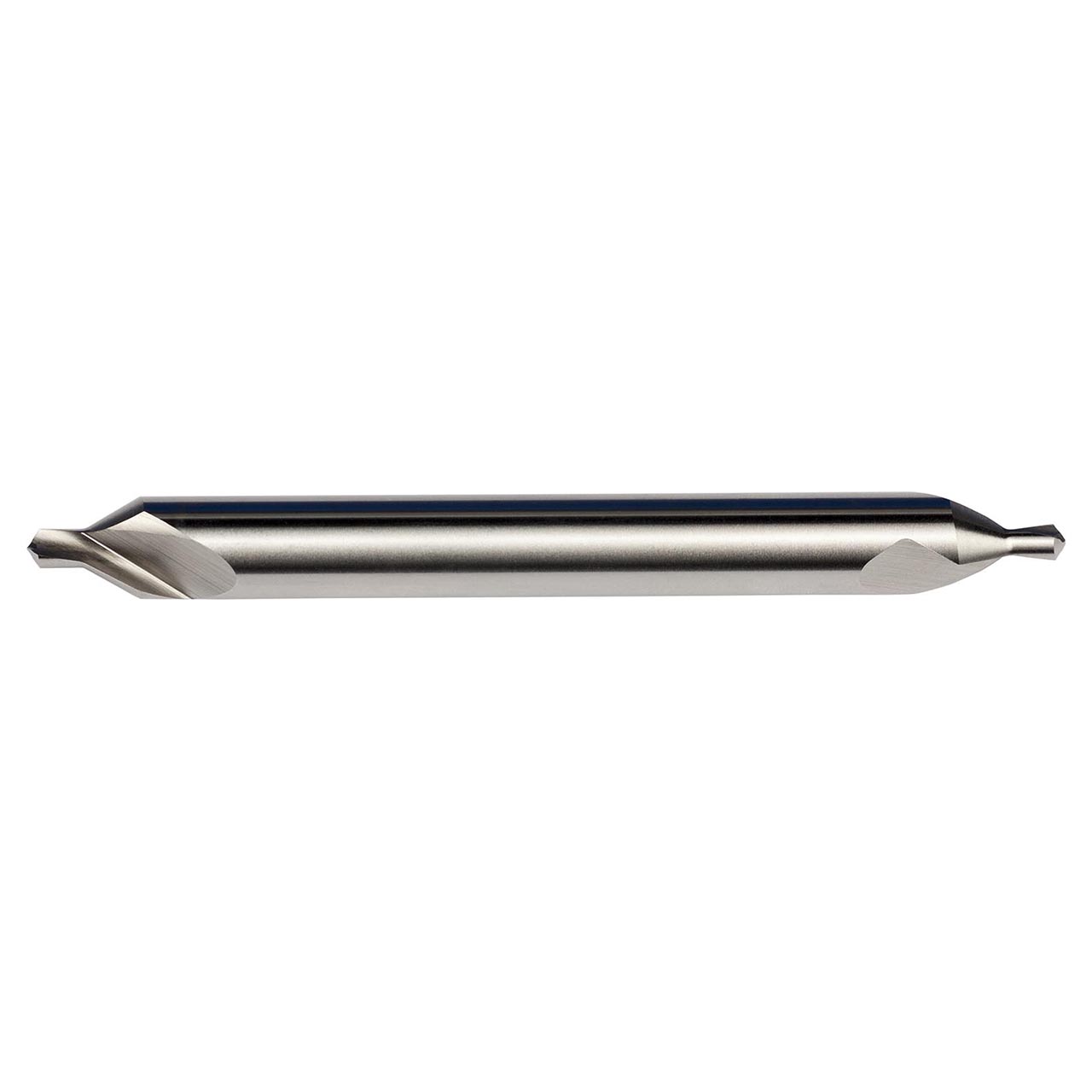

Dormer A2424.0X12.0 | 0.1575" Diameter x 3.937" OAL Bright Coated Combination Drill & Countersink

$34.88
Brand:
Dormer
Drill Point Diameter (Inch):
5/32"
Drill Point Diameter (Decimal Inch):
0.1575"
Drill Point Diameter (mm):
4mm
Included Angle:
118°
Material:
HSS-E
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
SKU:
10113927
Weight:
2.68 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 4.00mm drill diameter, a body diameter of 12.00mm and an overall length of 100mm, according to Dormer standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron.


Product Specifications
EDP Number47191822
Usable Length1
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.1575"
Overall Length (Inch)3.937"
Point Angle118
Material CodeHSS-E
Drill LengthShort
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Dormer
Drill Point Diameter (Inch):
5/32"
Drill Point Diameter (Decimal Inch):
0.1575"
Drill Point Diameter (mm):
4mm
Included Angle:
118°
Material:
HSS-E
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
