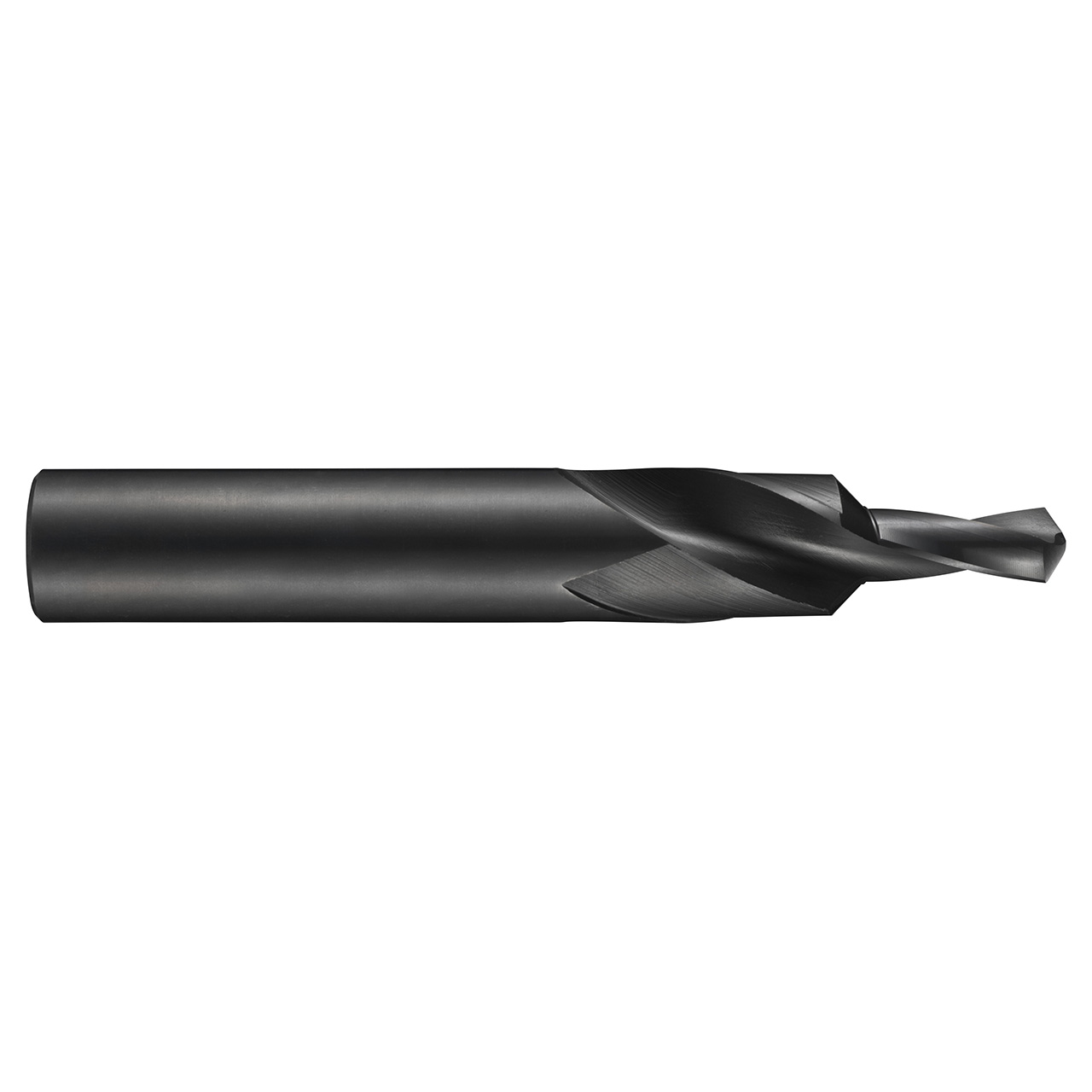

Dormer 5970338 | 11.00mm Drill Size x 21.50mm Shank x 70.00mm Flute Length x 141.00mm OAL x 118 Degree Point Angle Steam Tempered Coated HSS A412 Step Drill Bit

$231.00 $103.95
(You save $127.05)
Brand:
Dormer
Shank Size (Inch):
27/32"
Shank Size (Decimal Inch):
0.8465"
Shank Size (mm):
21.5mm
Finish/Coating:
Steam Tempered
Material:
HSS
Overall Length (Inch):
5-35/64"
Overall Length (Decimal Inch):
5.5512"
Overall Length (mm):
141mm
interval quantity:
1
SKU:
10110680
UPC:
7320760213698
Weight:
0.64 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Step drill with 90 Degree included step angle, straight shank and a drilling-pilot diameter of 11.00mm with a length of 23.00mm, a large diameter of 21.50mm and an overall length of 141mm, according to Dormer standard to produce a medium fit through hole and conical seat for M10 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron.


Product Specifications
EDP Number0213698
Usable Length2.5
Connection Diameter (Inch)0.8465"
Cutting Diameter (Inch)0.4331"
Overall Length (Inch)5.5512"
Thread Diameter (mm)M10mm
Point Angle118
Material CodeHSS
Drill LengthShort
Cutting DirectionRight Hand
CoatingSteam Tempered
Surface ColorBlack
Country of originGermany
