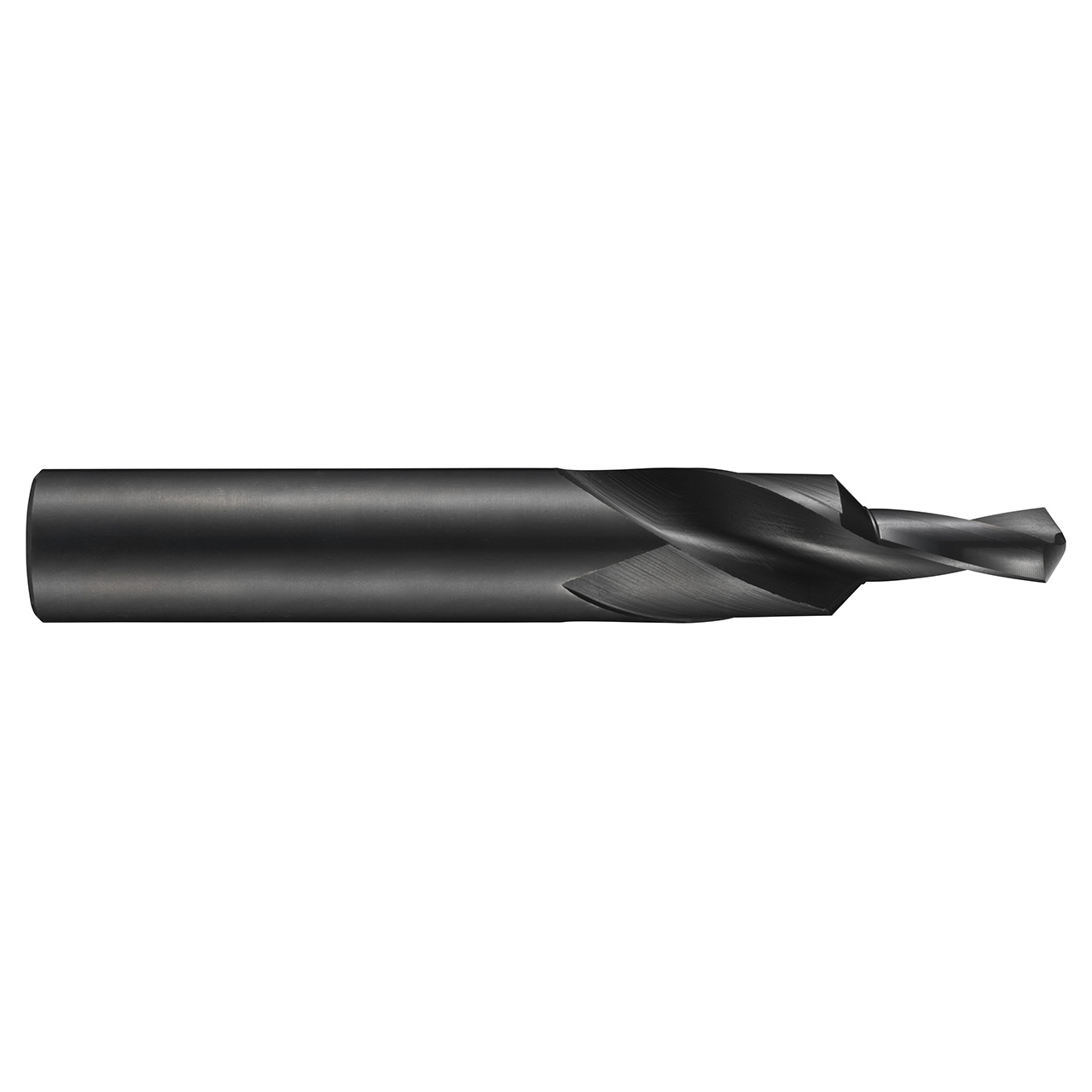

Step drill with 90° included step angle, straight shank and a drilling-pilot diameter of 6.60mm with a length of 15.00mm, a large diameter of 13.00mm and an overall length of 102mm, according to Dormer standard to produce a medium fit through hole and conical seat for M6 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron.
Product Specifications
| EDP Number | 0213674 |
| Usable Length | 2.5 |
| Connection Diameter (Inch) | 0.5118" |
| Cutting Diameter (Inch) | 0.2598" |
| Overall Length (Inch) | 4.0157" |
| Thread Diameter (mm) | M6mm |
| Point Angle | 118 |
| Material Code | HSS |
| Drill Length | Short |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Surface Color | Black |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Shank Size (Inch):
33/64"
Shank Size (Decimal Inch):
0.5118"
Shank Size (mm):
13mm
Finish/Coating:
Steam Tempered
Material:
HSS
Overall Length (Inch):
4-1/64"
Overall Length (Decimal Inch):
4.0157"
Overall Length (mm):
102mm
