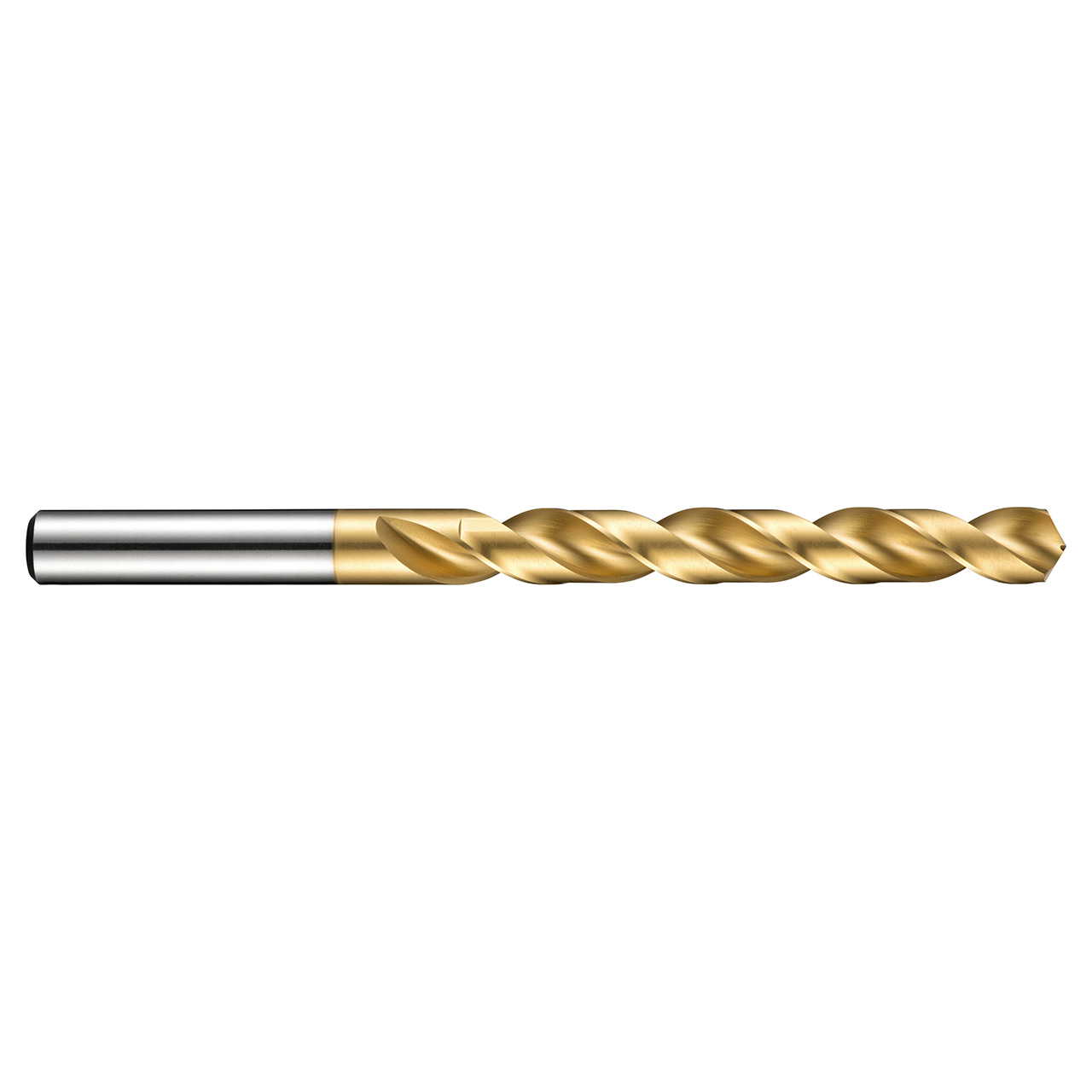

Dormer A5103.9 | 0.1535" Diameter x 2.9528" OAL TiN Coated Jobber Length Drill Bit

$16.44
Brand:
Dormer
Drill Bit Size (Inch):
5/32"
Drill Bit Size (Decimal Inch):
0.1535"
Drill Bit Size (mm):
3.9mm
Drill Point Angle:
130°
Overall Length (Inch):
2-61/64"
Overall Length (Decimal Inch):
2.9528"
Overall Length (mm):
75mm
Cutting Direction:
Right Hand
Material:
HSS
Finish/Coating:
TiN
SKU:
10108756
UPC:
7320760036587
Weight:
0.18 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Dormer's A510 drill is available in a range of fractional and metric diameters. The drills have a 130° thinned point which aids self-centering and reduces the force needed when drilling a hole. The drills have a titanium nitride coating which increases the life of the drill and improves performance when drilling harder materials. The specially designed convex cutting edges on the A510 help break chips more easily so cut material is removed more quickly and you can increase cutting speeds and feeds, with a corresponding reduction in machining times. Made from premium High speed material, the A510 can be used for drilling many materials including steels, aluminium and stainless steels. The A510 is a high performance drill and is able to produce accurate, high quality holes (h9 tolerance), even when operating at high speeds and feeds.


Product Specifications
EDP Number0036587
Usable Length4
Connection Diameter (Inch)0.1535"
Cutting Diameter (Inch)0.1535"
Overall Length (Inch)2.9528"
Point Angle130
Material CodeHSS
Drill LengthJobber
Cutting DirectionRight Hand
CoatingTiN
Surface ColorGold
