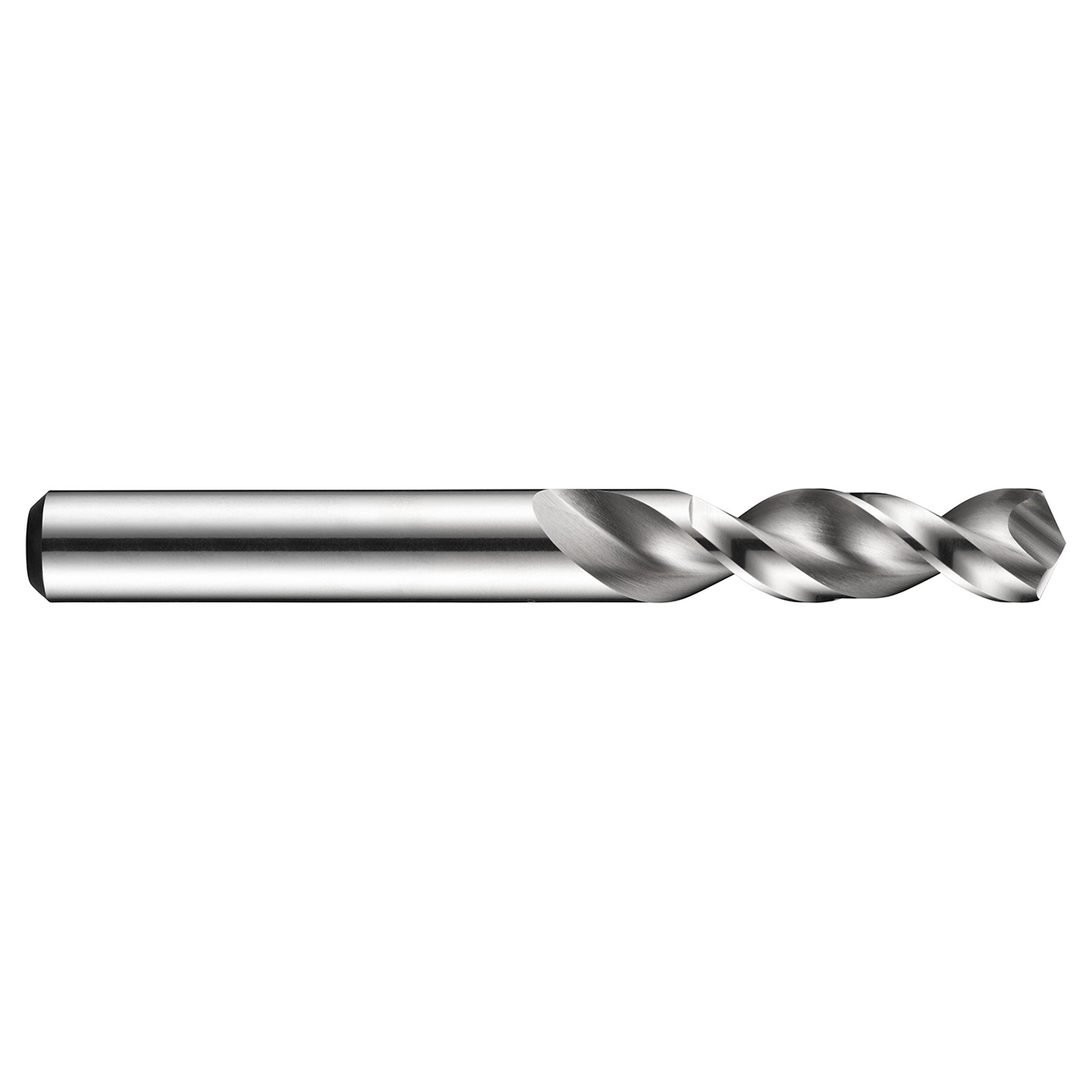

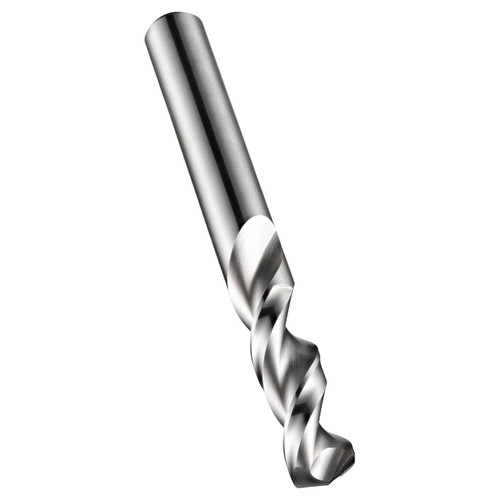

The A920 short drill from Dormer is available in an extensive range of fractional and metric diameters. Part of Dormer's PFX range of drills, the A920 has a parabolic flute design which means deeper holes can be drilled in a single pass. The tool is made from High Speed cobalt and can be used to drill a number of different materials including aluminium, steels and stainless steels, whilst the bright finish means workpiece material will not stick to the cutting edge of the tool. The A920 has a 130° point angle which helps to self-center the tool on the hole and means less force is needed to drill into the workpiece. The A920 PFX drill is a high performance tool and produces high quality and accurate holes (to H10 hole tolerance) even at high speeds and feeds.
| EDP Number | 0050941 |
| Usable Length | 3 |
| Connection Diameter (Inch) | 0.1417" |
| Cutting Diameter (Inch) | 0.1417" |
| Overall Length (Inch) | 2.0472" |
| Point Angle | 130 |
| Material Code | HSS-E |
| Drill Length | Stub |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
