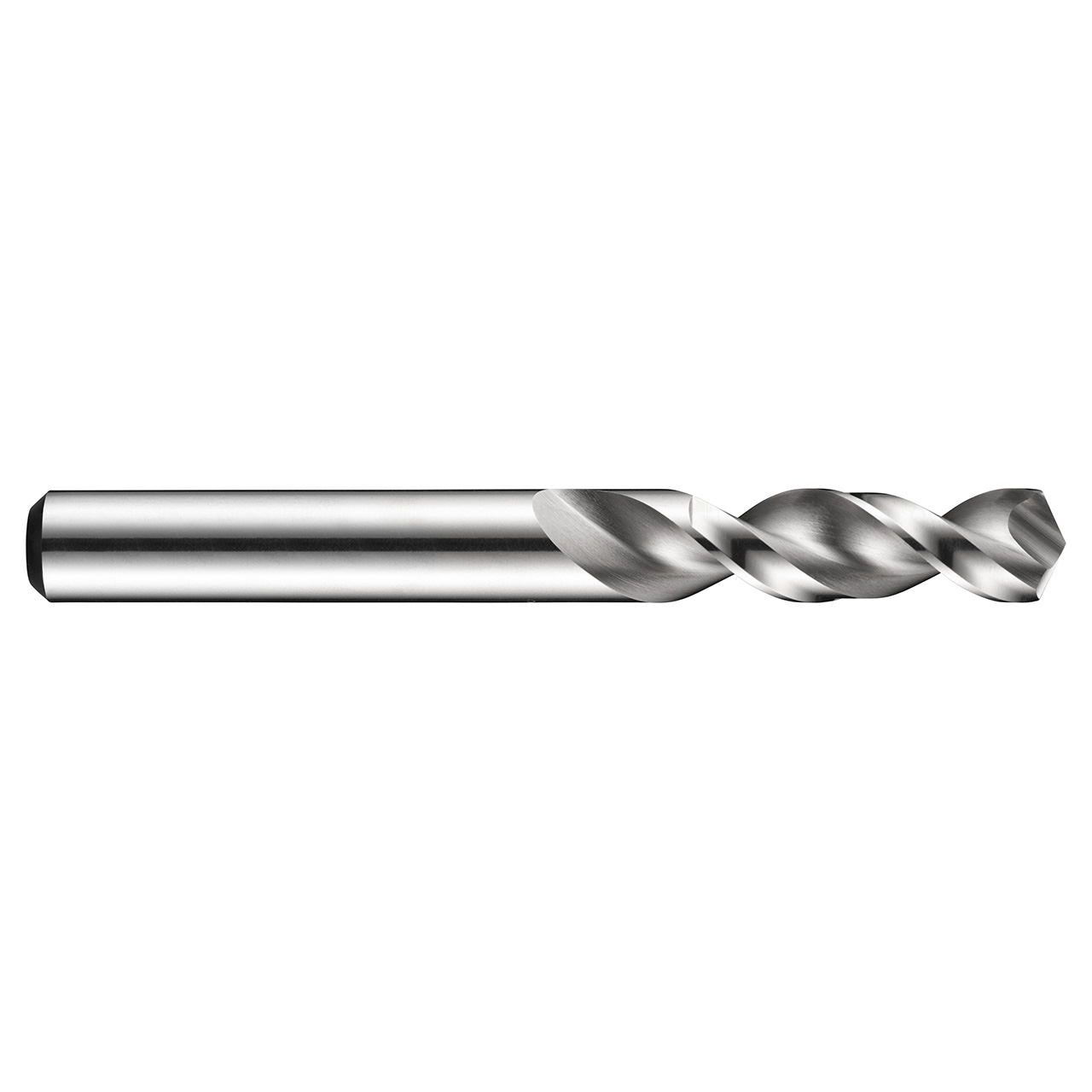

Dormer A9206.2 | 0.2441" Diameter x 2.7559" OAL Bright Coated Screw Machine Length Drill Bit

$14.90 $14.16
(You save $0.74)
Brand:
Dormer
Drill Bit Size (Inch):
1/4"
Drill Bit Size (Decimal Inch):
0.2441"
Drill Bit Size (mm):
6.2mm
Drill Point Angle:
130 Degree
Flute Length (Inch):
1-7/32"
Flute Length (Decimal Inch):
1.2200"
Flute Length (mm):
31mm
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7559"
Overall Length (mm):
70mm
Material:
HSS-E
Finish/Coating:
Bright
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
10109622
UPC:
7320760051290
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

The A920 short drill from Dormer is available in an extensive range of fractional and metric diameters. Part of Dormer's PFX range of drills, the A920 has a parabolic flute design which means deeper holes can be drilled in a single pass. The tool is made from High Speed cobalt and can be used to drill a number of different materials including aluminium, steels and stainless steels, whilst the bright finish means workpiece material will not stick to the cutting edge of the tool. The A920 has a 130 Degree point angle which helps to self-center the tool on the hole and means less force is needed to drill into the workpiece. The A920 PFX drill is a high performance tool and produces high quality and accurate holes (to H10 hole tolerance) even at high speeds and feeds.


Product Specifications
EDP Number0051290
Usable Length3
Connection Diameter (Inch)0.2441"
Cutting Diameter (Inch)0.2441"
Overall Length (Inch)2.7559"
Point Angle130
Material CodeHSS-E
Drill LengthStub
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
Country of originFrance

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Dormer
Drill Bit Size (Inch):
1/4"
Drill Bit Size (Decimal Inch):
0.2441"
Drill Bit Size (mm):
6.2mm
Drill Point Angle:
130 Degree
Flute Length (Inch):
1-7/32"
Flute Length (Decimal Inch):
1.2200"
Flute Length (mm):
31mm
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7559"
Overall Length (mm):
70mm
Material:
HSS-E
Finish/Coating:
Bright
Cutting Direction:
Right Hand
interval quantity:
1
