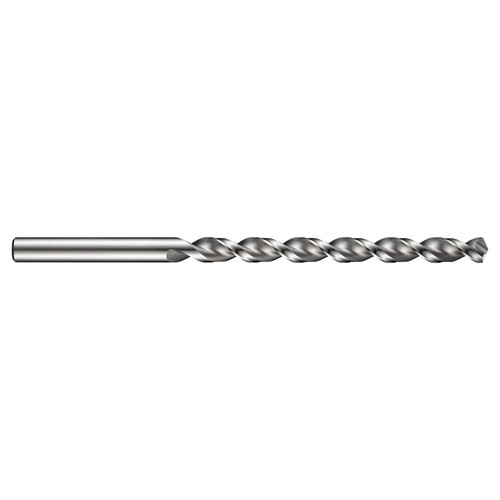

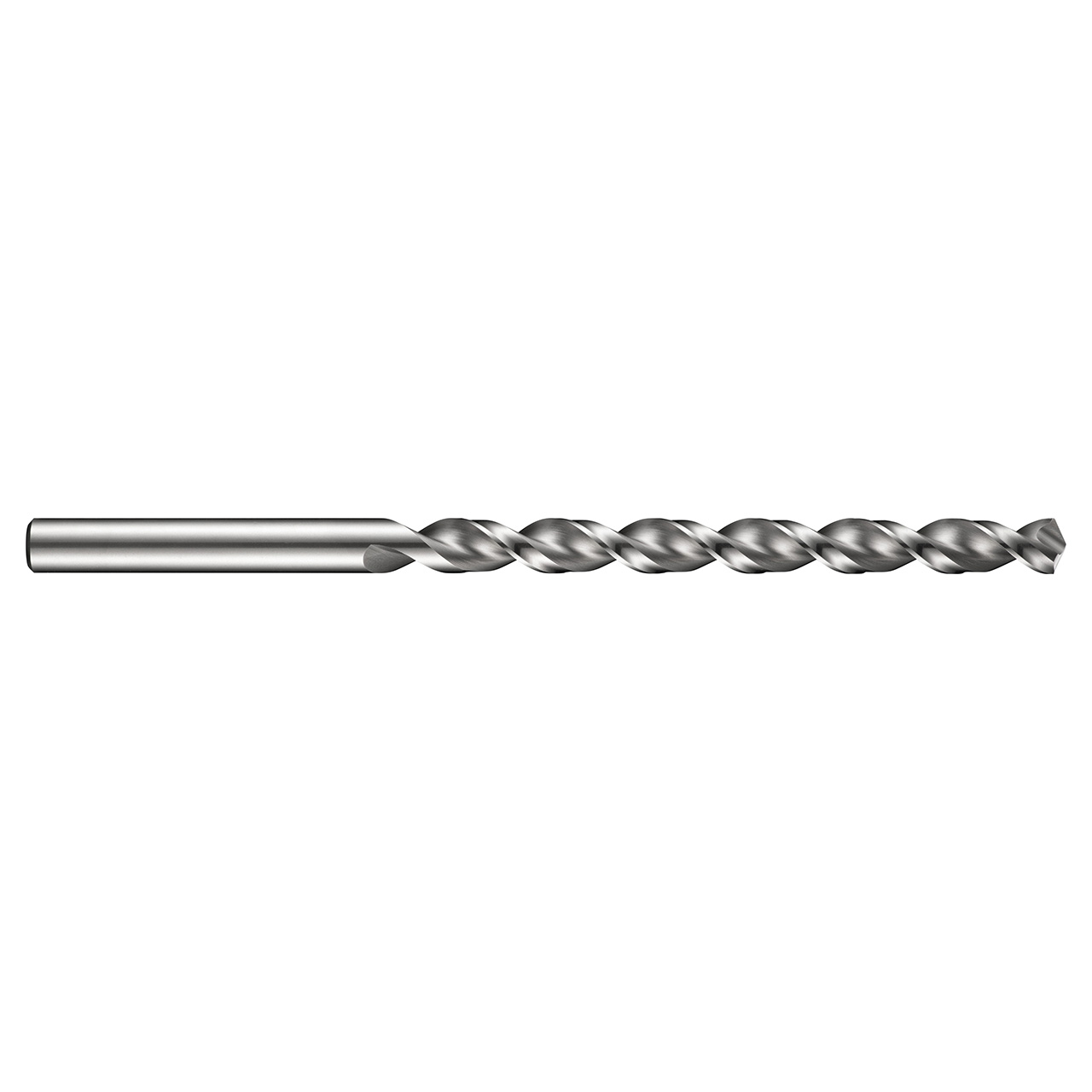

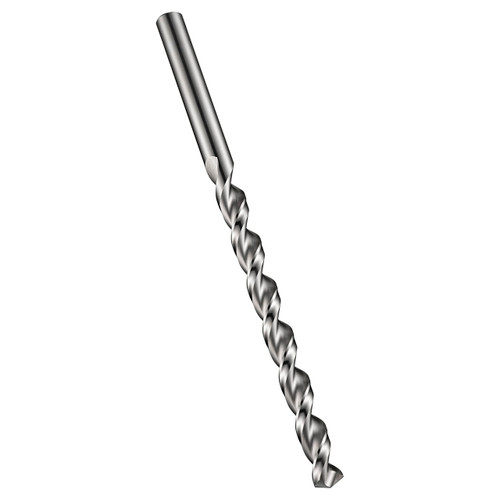

Dormer A9403.1 | 0.122" Diameter x 4.1732" OAL Bright Coated Taper Length Drill Bit

$12.26
Brand:
Dormer
Drill Bit Size (Inch):
1/8"
Drill Bit Size (Decimal Inch):
0.1220"
Drill Bit Size (mm):
3.1mm
Flute Length (Inch):
2-23/32"
Flute Length (Decimal Inch):
2.7200"
Flute Length (mm):
69mm
Overall Length (Inch):
4-11/64"
Overall Length (Decimal Inch):
4.1732"
Overall Length (mm):
106mm
Drill Point Angle:
130°
Finish/Coating:
Bright
Material:
HSS-E
SKU:
10109840
UPC:
7320760055465
Weight:
0.15 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

The A940 long series PFX drill from Dormer comes in a range of fractional and metric diameters. The special parabolic flute design means you can drill extra deep holes in a single pass whilst the 130° point angle helps with self-centering-no more wandering over the workpiece surface trying to start the hole-and also reduces the amount of force needed to drill into the workpiece. The A920 is manufactured from High Speed cobalt so the tool can be used to machine many materials including steels, stainless steels and aluminium, and has a bright finish to stop workpiece material from sticking to the cutting edges of the tool. The high performance A940 PFX drill is capable of producing high quality and accurate holes (to H10 hole tolerance) even at high speeds and feeds.


Product Specifications
EDP Number0055465
Usable Length10
Connection Diameter (Inch)0.122"
Cutting Diameter (Inch)0.122"
Overall Length (Inch)4.1732"
Point Angle130
Material CodeHSS-E
Drill LengthTaper Length
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Dormer
Drill Bit Size (Inch):
1/8"
Drill Bit Size (Decimal Inch):
0.1220"
Drill Bit Size (mm):
3.1mm
Flute Length (Inch):
2-23/32"
Flute Length (Decimal Inch):
2.7200"
Flute Length (mm):
69mm
Overall Length (Inch):
4-11/64"
Overall Length (Decimal Inch):
4.1732"
Overall Length (mm):
106mm
Drill Point Angle:
130°
Finish/Coating:
Bright
Material:
HSS-E
