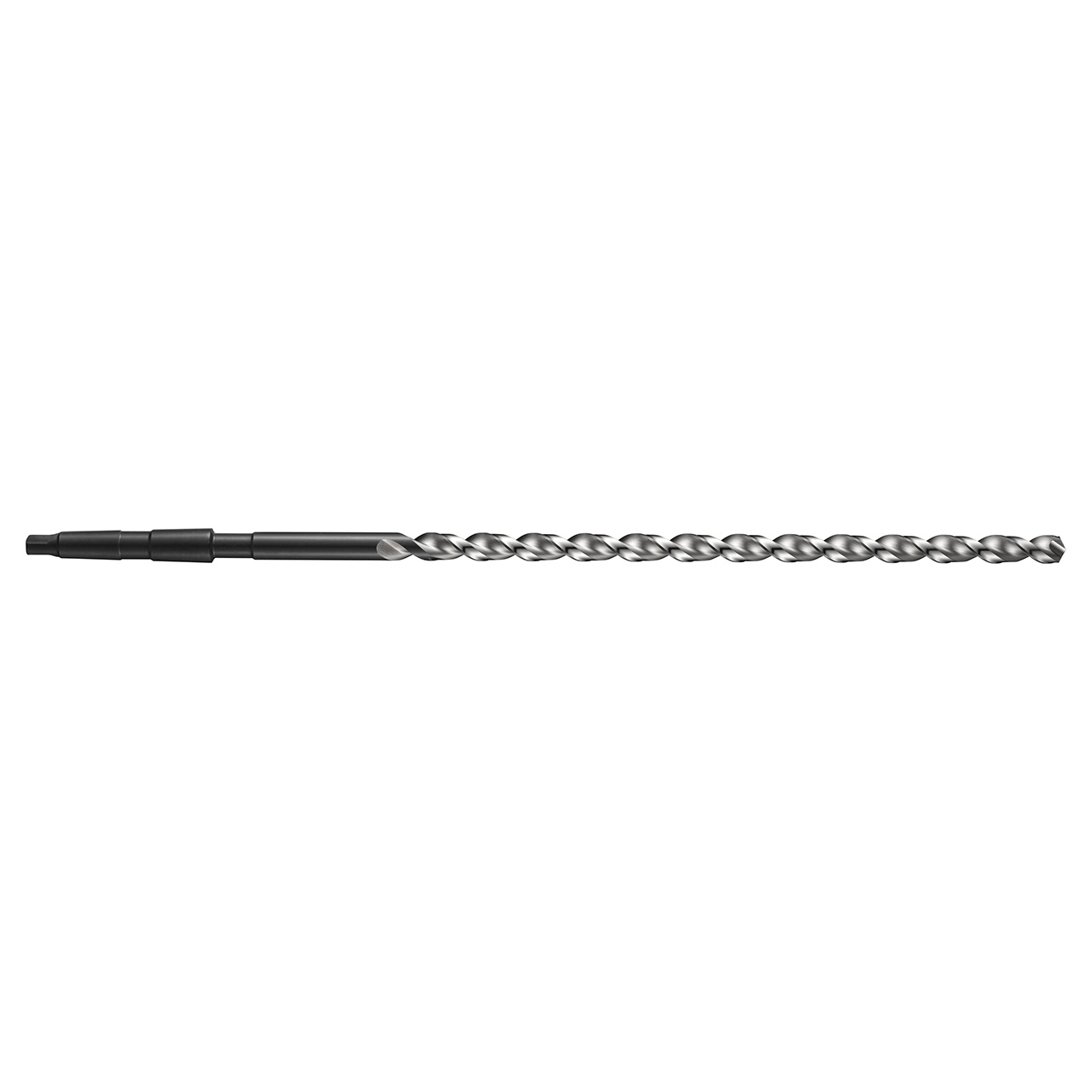

Dormer's PFX range of extra long drills is further enhanced with the A952 drills which are available in diameters from 8.00mm to 40.00mm. These drills have a specially designed parabolic flute which makes it possible to drill extra deep holes in a single go-no need to keep taking the drill out to clear the swarf and then drilling a little deeper (pecking). The drills are made from premium high speed steel so they can be used to drill a great many materials including aluminium, steels and stainless steels. The tools have a 130° point which is self-centering, so stops the point from skidding over the surface of the workpiece and also means less force than a normal point is needed to drill into the workpiece. The bright finish on the drills stops workpiece material from sticking to the cutting edge, so giving you a more accurate hole with a better finish. The taper shank on the A952 drills means they can be held directly in the spindle for machine applications, making them very versatile drills.
| EDP Number | 0419977 |
| Usable Length | 20 |
| Cutting Diameter (Inch) | 0.5906" |
| Overall Length (Inch) | 16.7323" |
| Point Angle | 130 |
| Material Code | HSS |
| Drill Length | Extra Length |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Surface Color | Bright & Blue |
