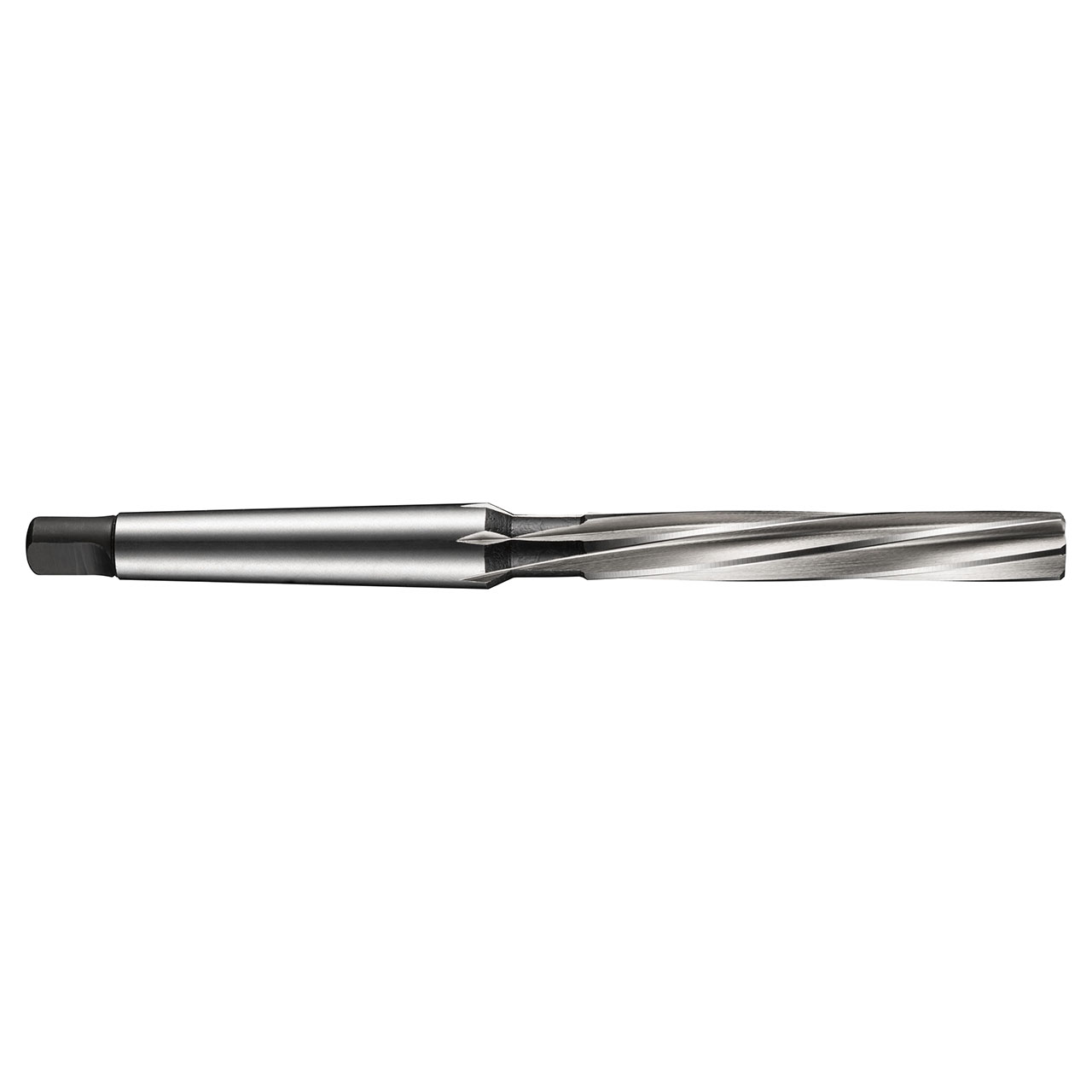

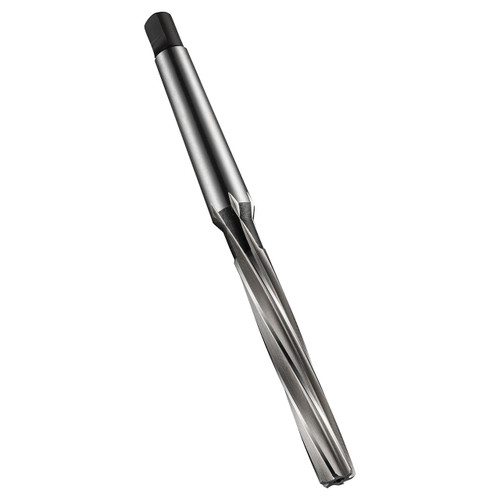

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 16.50mm with an overall length of 187mm and a flute length of 87mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0181836 |
| Flute Count | 8 |
| Cutting Diameter (Inch) | 0.6496" |
| Overall Length (Inch) | 7.3622" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Surface Color | Bright & Blue |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
21/32"
Reamer Diameter (Decimal Inch):
0.6496"
Reamer Diameter (mm):
16.5mm
Overall Length (Inch):
7-23/64"
Overall Length (Decimal Inch):
7.3622"
Overall Length (mm):
187mm
Flute Length (Inch):
3-27/64"
Flute Length (Decimal Inch):
3.4300"
Flute Length (mm):
87mm
Material:
HSS-E
Finish/Coating:
Bright/ST
