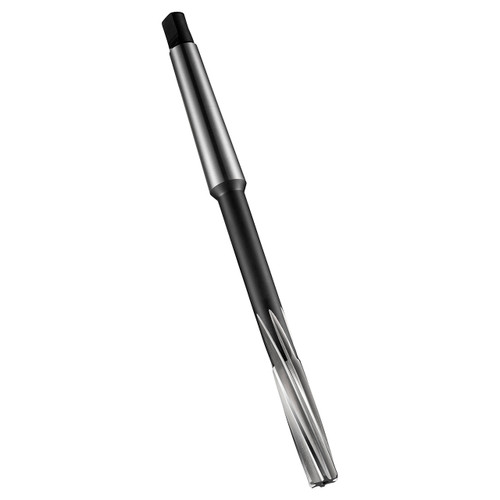

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 10.00mm with an overall length of 168mm, a flute length of 38mm and 102.5mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0049761 |
| Flute Count | 6 |
| Cutting Diameter (Inch) | 0.3937" |
| Body Length (mm) | 102.5mm |
| Overall Length (Inch) | 6.6142" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
25/64"
Reamer Diameter (Decimal Inch):
0.3937"
Reamer Diameter (mm):
10mm
Overall Length (Inch):
6-39/64"
Overall Length (Decimal Inch):
6.6142"
Overall Length (mm):
168mm
Flute Length (Inch):
1-1/2"
Flute Length (Decimal Inch):
1.5000"
Flute Length (mm):
38mm
Material:
HSS-E
Finish/Coating:
Bright
