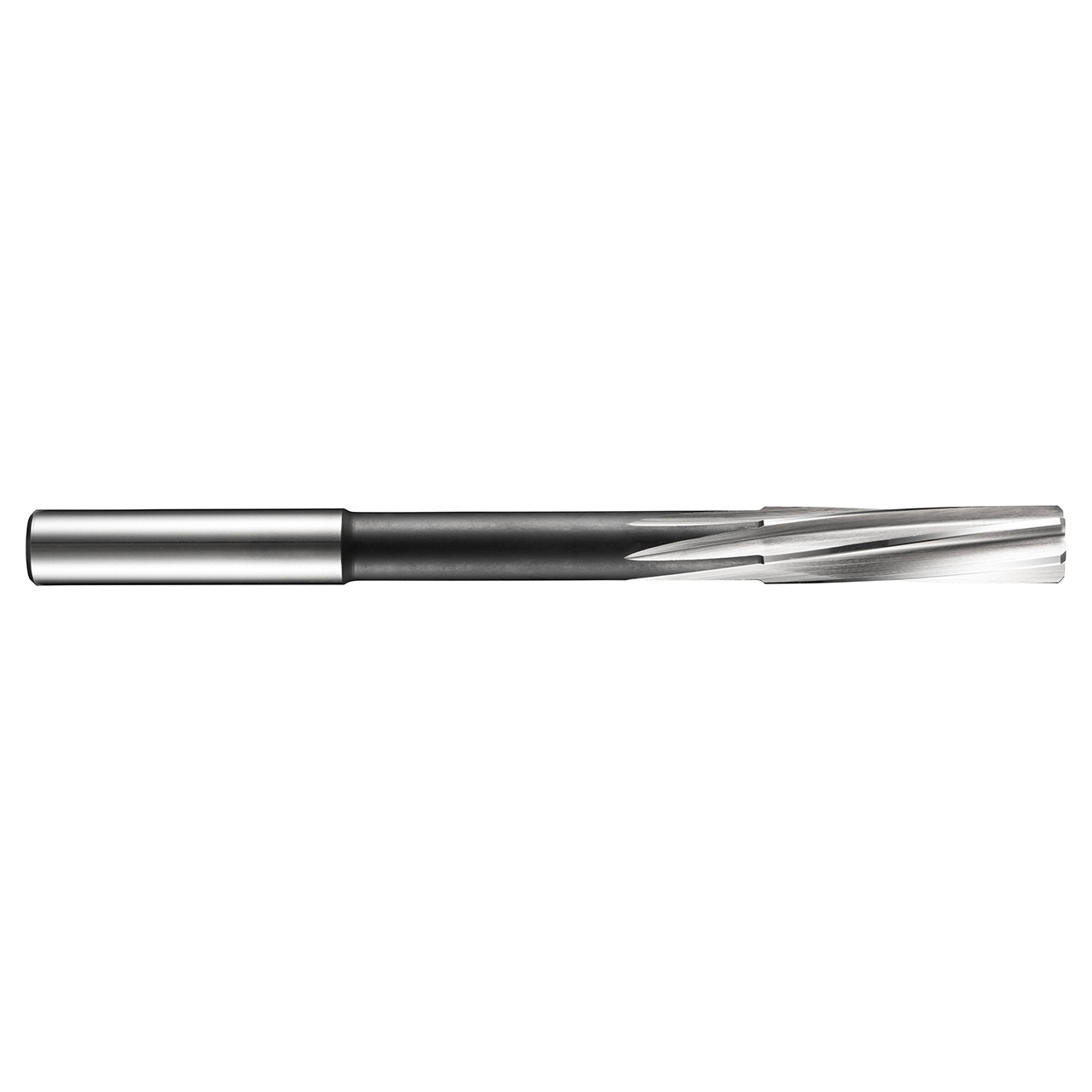

Dormer B1706.03 | 0.2374" Diameter x 3.9764" OAL Bright Coated Chucking Reamer

$41.04
Brand:
Dormer
Reamer Diameter (Inch):
15/64"
Reamer Diameter (Decimal Inch):
0.2374"
Reamer Diameter (mm):
6.03mm
Overall Length (Inch):
3-31/32"
Overall Length (Decimal Inch):
3.9764"
Overall Length (mm):
101mm
Flute Length (Inch):
1-7/64"
Flute Length (Decimal Inch):
1.1000"
Flute Length (mm):
28mm
Material:
HSS-E
Finish/Coating:
Bright
SKU:
10114897
UPC:
7320760134801
Weight:
0.74 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 6.03mm with an overall length of 101mm, a flute length of 28mm and 63mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 6E8, 6F9 or 6H10, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.


Product Specifications
EDP Number0134801
Flute Count6
Connection Diameter (Inch)0.248"
Cutting Diameter (Inch)0.2374"
Body Length (mm)63mm
Overall Length (Inch)3.9764"
Material CodeHSS-E
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
