Dormer B1709.98 | 0.3929" Diameter x 5.2362" OAL Bright Coated Chucking Reamer

$54.45
Brand:
Dormer
Reamer Diameter (Inch):
25/64"
Reamer Diameter (Decimal Inch):
0.3929"
Reamer Diameter (mm):
9.98mm
Overall Length (Inch):
5-15/64"
Overall Length (Decimal Inch):
5.2362"
Overall Length (mm):
133mm
Flute Length (Inch):
1-1/2"
Flute Length (Decimal Inch):
1.5000"
Flute Length (mm):
38mm
Material:
HSS-E
Finish/Coating:
Bright
SKU:
10114939
UPC:
7320760138717
Weight:
2.47 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

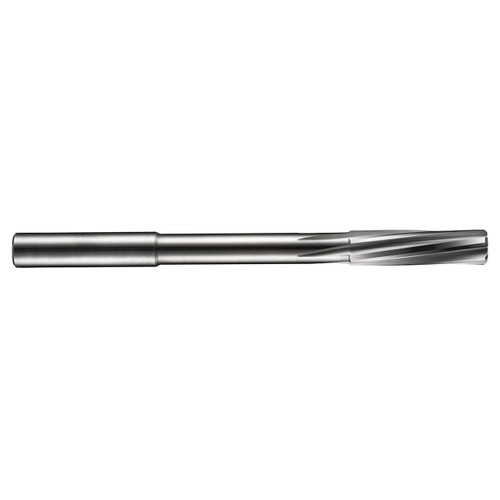

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 9.98mm with an overall length of 133mm, a flute length of 38mm and 87mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 10N10 or 10N11, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.


Product Specifications
EDP Number0138717
Flute Count6
Connection Diameter (Inch)0.3937"
Cutting Diameter (Inch)0.3929"
Body Length (mm)87mm
Overall Length (Inch)5.2362"
Material CodeHSS-E
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
