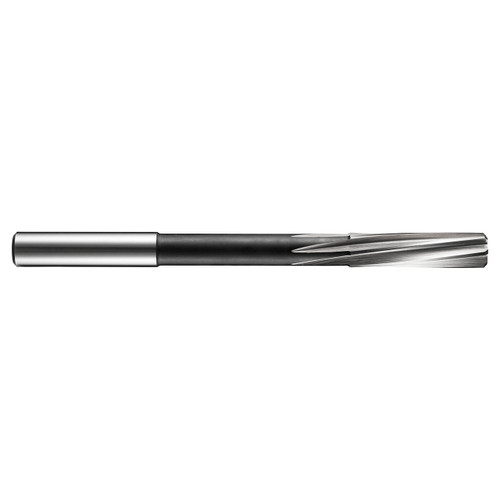

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 4.50mm with an overall length of 80mm, a flute length of 21mm and 47mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0419052 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.1969" |
| Cutting Diameter (Inch) | 0.1772" |
| Body Length (mm) | 47mm |
| Overall Length (Inch) | 3.1496" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
11/64"
Reamer Diameter (Decimal Inch):
0.1772"
Reamer Diameter (mm):
4.5mm
Overall Length (Inch):
3-5/32"
Overall Length (Decimal Inch):
3.1496"
Overall Length (mm):
80mm
Flute Length (Inch):
53/64"
Flute Length (Decimal Inch):
0.8300"
Flute Length (mm):
21mm
Material:
HSS-E
Finish/Coating:
Bright
