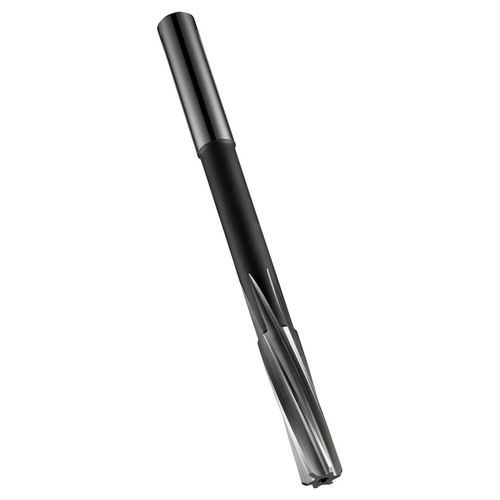

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 8.10mm with an overall length of 117mm, a flute length of 33mm and 75mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
| EDP Number | 0419410 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.315" |
| Cutting Diameter (Inch) | 0.3189" |
| Body Length (mm) | 75mm |
| Overall Length (Inch) | 4.6063" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | Germany |
