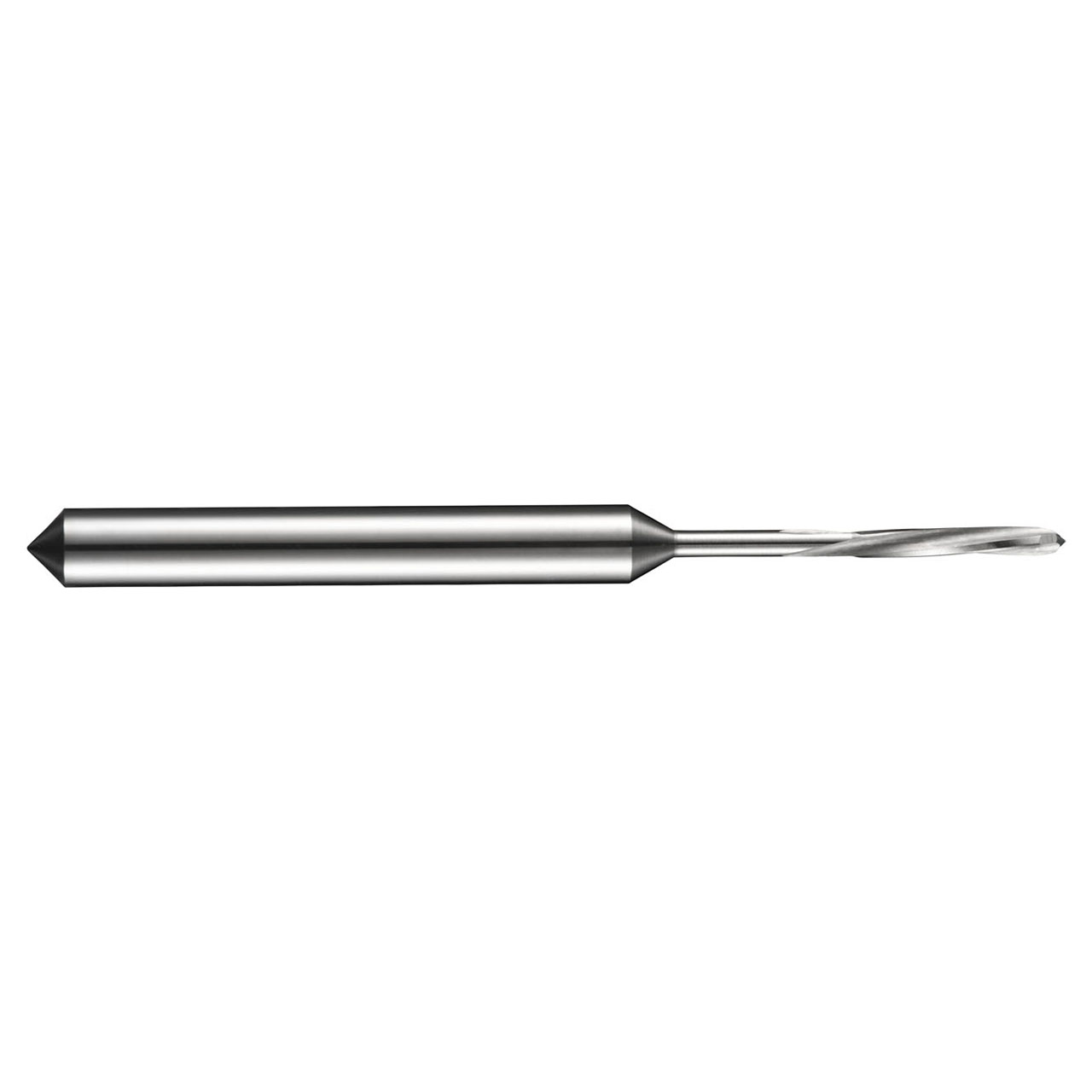

Dormer B4811.53 | 0.0602" Diameter x 1.9685" OAL Bright Coated Chucking Reamer

$120.84
Brand:
Dormer
Reamer Diameter (Inch):
1/16"
Reamer Diameter (Decimal Inch):
0.0602"
Reamer Diameter (mm):
1.53mm
Overall Length (Inch):
1-31/32"
Overall Length (Decimal Inch):
1.9685"
Overall Length (mm):
50mm
Flute Length (Inch):
25/64"
Flute Length (Decimal Inch):
0.3900"
Flute Length (mm):
10mm
Material:
HM
Finish/Coating:
Bright
SKU:
10115376
Weight:
0.16 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 1.53mm with an overall length of 49mm, a flute length of 9mm and 21mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 1.5E9 or 1.5H10, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.


Product Specifications
EDP Number0421673
Flute Count3
Connection Diameter (Inch)0.1181"
Cutting Diameter (Inch)0.0602"
Body Length (mm)28mm
Overall Length (Inch)1.9685"
Material CodeHM
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Dormer
Reamer Diameter (Inch):
1/16"
Reamer Diameter (Decimal Inch):
0.0602"
Reamer Diameter (mm):
1.53mm
Overall Length (Inch):
1-31/32"
Overall Length (Decimal Inch):
1.9685"
Overall Length (mm):
50mm
Flute Length (Inch):
25/64"
Flute Length (Decimal Inch):
0.3900"
Flute Length (mm):
10mm
Material:
HM
Finish/Coating:
Bright
