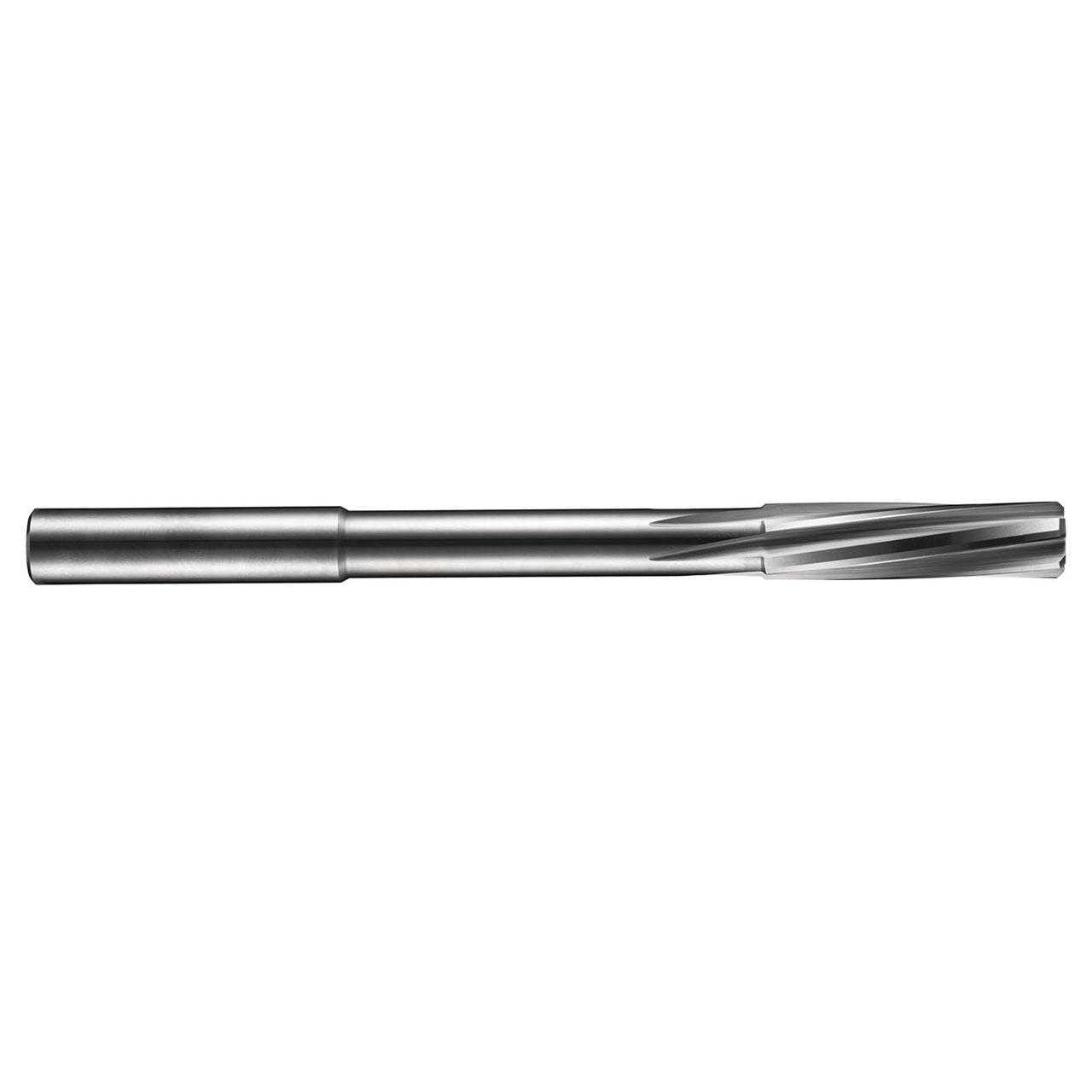

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 3.99mm with an overall length of 75mm, a flute length of 19mm and 47mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 4N7, 4N8 or 4N9, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
| EDP Number | 0422045 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.1575" |
| Cutting Diameter (Inch) | 0.1571" |
| Body Length (mm) | 28mm |
| Overall Length (Inch) | 2.9528" |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
