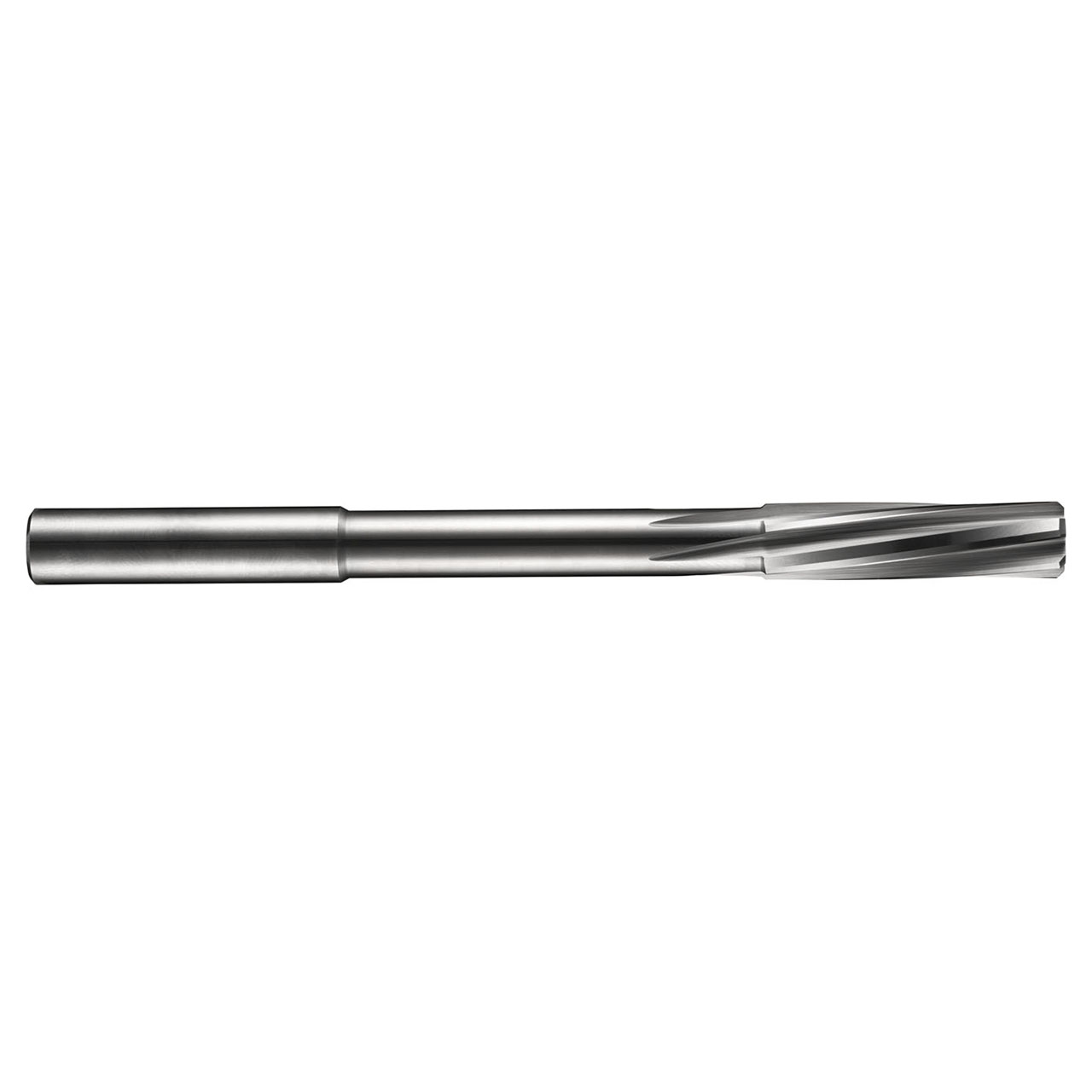

Dormer B4816.03 | 0.2374" Diameter x 3.6614" OAL Bright Coated Chucking Reamer

$177.27
Brand:
Dormer
Reamer Diameter (Inch):
15/64"
Reamer Diameter (Decimal Inch):
0.2374"
Reamer Diameter (mm):
6.03mm
Overall Length (Inch):
3-21/32"
Overall Length (Decimal Inch):
3.6614"
Overall Length (mm):
93mm
Flute Length (Inch):
1-1/32"
Flute Length (Decimal Inch):
1.0200"
Flute Length (mm):
26mm
Material:
HM
Finish/Coating:
Bright
SKU:
10115431
UPC:
7320760422229
Weight:
1.32 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 6.03mm with an overall length of 93mm, a flute length of 26mm and 57mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 6E8, 6F9 or 6H10, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.


Product Specifications
EDP Number0422229
Flute Count6
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.2374"
Body Length (mm)36mm
Overall Length (Inch)3.6614"
Material CodeHM
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
