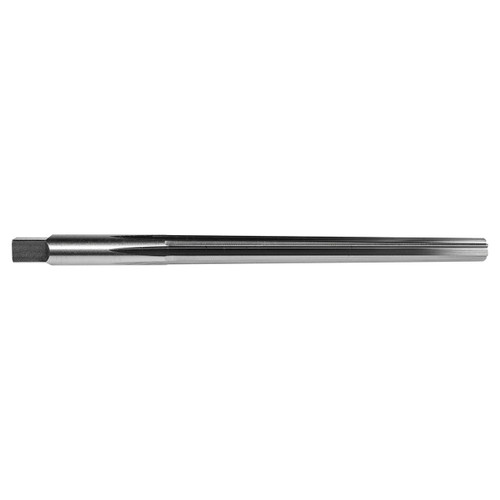

Dormer B660N9 | 0.48" Diameter x 8.3125" OAL 8 Flute Bright Silver Coated Taper Pin Reamer

$239.00 $107.55
(You save $131.45)
Brand:
Dormer
Flute Length (Inch):
8-17/64"
Flute Length (Decimal Inch):
8.2700"
Flute Length (mm):
210mm
Overall Length (Inch):
10-3/64"
Overall Length (Decimal Inch):
10.0394"
Overall Length (mm):
10.0400"
Material:
HSS
Finish/Coating:
Bright/ST
interval quantity:
1
SKU:
10234193
UPC:
Weight:
0.47 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Taper pin hand reamer with straight flutes and a square drive, large end diameter 0.6066" with an overall length of 8.5/16", a flute length of 6.1/16" and 0.4800 small end diameter, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming tapered pin holes with a 1:48 taper into which standard number 9 taper pins (per ASA B5.20-1958) will fit, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.


Product Specifications
Flute Count8
Connection Diameter (Inch)0.6066"
Cutting Diameter (Inch)0.48"
Overall Length (Inch)8.3125"
Material CodeHSS
Cutting DirectionRight Hand
CoatingBright Silver
Surface ColorOriginal surface
Country of originUnited States of America
