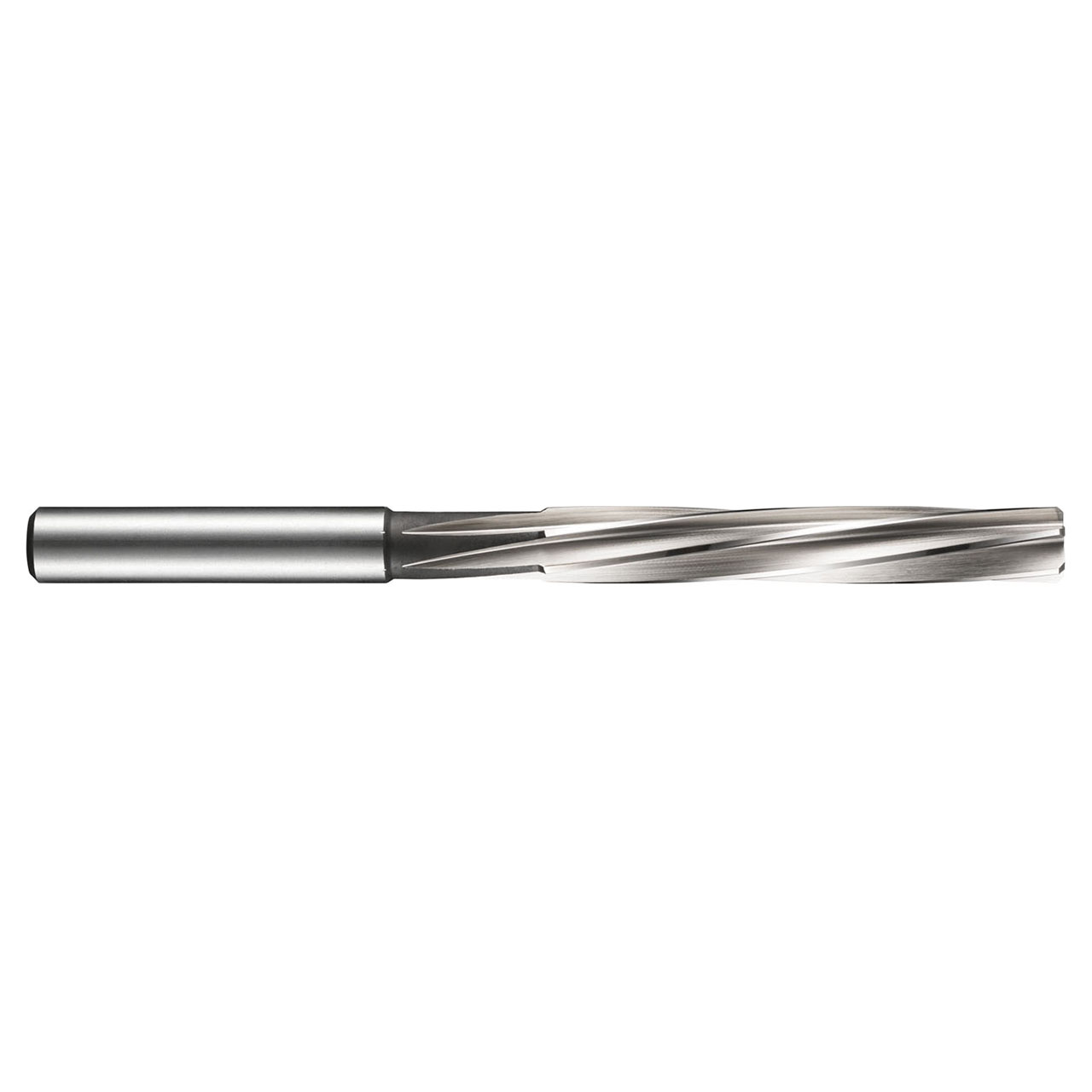

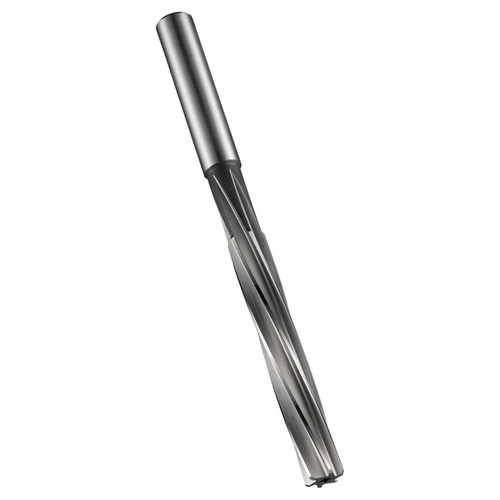

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 2.38mm (3/32") with an overall length of 58mm and a flute length of 29mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
EDP Number | 0180839 |
Flute Count | 4 |
Connection Diameter (Inch) | 0.0937" |
Cutting Diameter (Inch) | 0.0938" |
Overall Length (Inch) | 2.2835" |
Material Code | HSS-E |
Cutting Direction | Right Hand |
Coating | Bright/ST |
Surface Color | Bright & Blue |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
3/32"
Reamer Diameter (Decimal Inch):
0.0938"
Reamer Diameter (mm):
2.38mm
Overall Length (Inch):
2-9/32"
Overall Length (Decimal Inch):
2.2835"
Overall Length (mm):
58mm
Flute Length (Inch):
1-9/64"
Flute Length (Decimal Inch):
1.1400"
Flute Length (mm):
29mm
Material:
HSS-E
Finish/Coating:
Bright/ST
