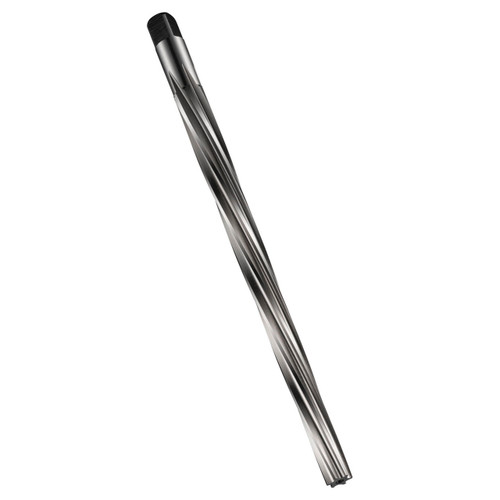

Name: Dormer B95214.0 | 0.6299" Diameter x 10.0394" OAL 8 Flute Bright Coated Taper Pin Reamer
Brand: Dormer
SKU: 10114974
Price: 247.05 USD
Availability: InStock

Dormer B95214.0 | 0.6299" Diameter x 10.0394" OAL 8 Flute Bright Coated Taper Pin Reamer

$549.00 $247.05

(You save $301.95)

Brand:

Dormer

Flute Length (Inch):

9-1/16"

Flute Length (Decimal Inch):

9.0600"

Flute Length (mm):

230mm

Overall Length (Inch):

13-3/16"

Overall Length (Decimal Inch):

13.1890"

Overall Length (mm):

335mm

Material:

HSS-E

Finish/Coating:

Bright

interval quantity:

SKU:

10114974

UPC:

7320760141014

Weight:

0.63 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 13.80mm with an overall length of 255mm, a flute length of 210mm and 18.00mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 14.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys.

Product Specifications

EDP Number	0141014
Flute Count	8
Connection Diameter (Inch)	0.6299"
Overall Length (Inch)	10.0394"
Material Code	HSS
Cutting Direction	Right Hand
Coating	Bright
Surface Color	Bright Silver
Country of origin	Germany
