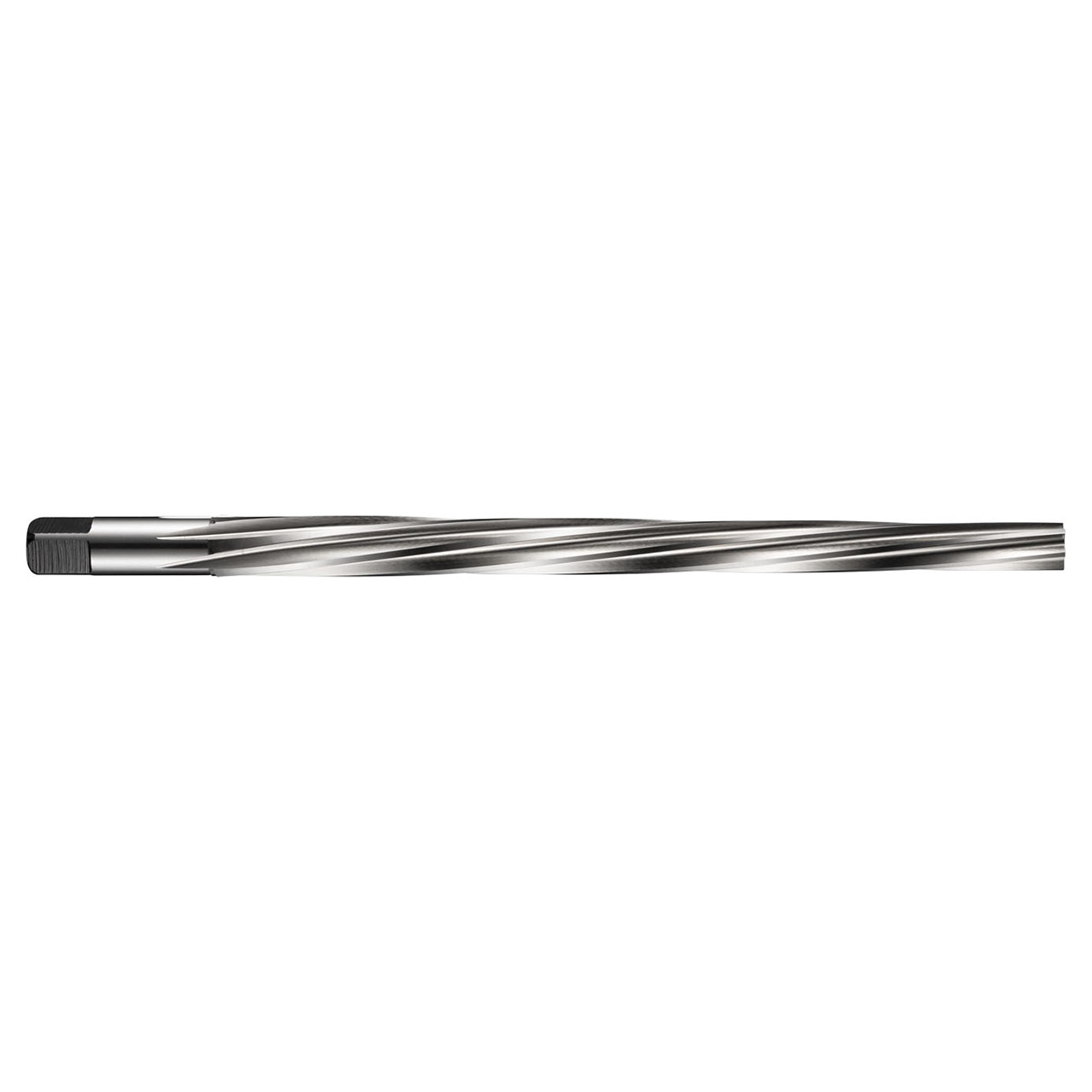

Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 6.90mm with an overall length of 160mm, a flute length of 125mm and 9.40mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 7.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0140987 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.3543" |
| Overall Length (Inch) | 6.2992" |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Flute Length (Inch):
5-45/64"
Flute Length (Decimal Inch):
5.7100"
Flute Length (mm):
145mm
Overall Length (Inch):
7-3/32"
Overall Length (Decimal Inch):
7.0866"
Overall Length (mm):
180mm
Material:
HSS
Finish/Coating:
Bright/ST
