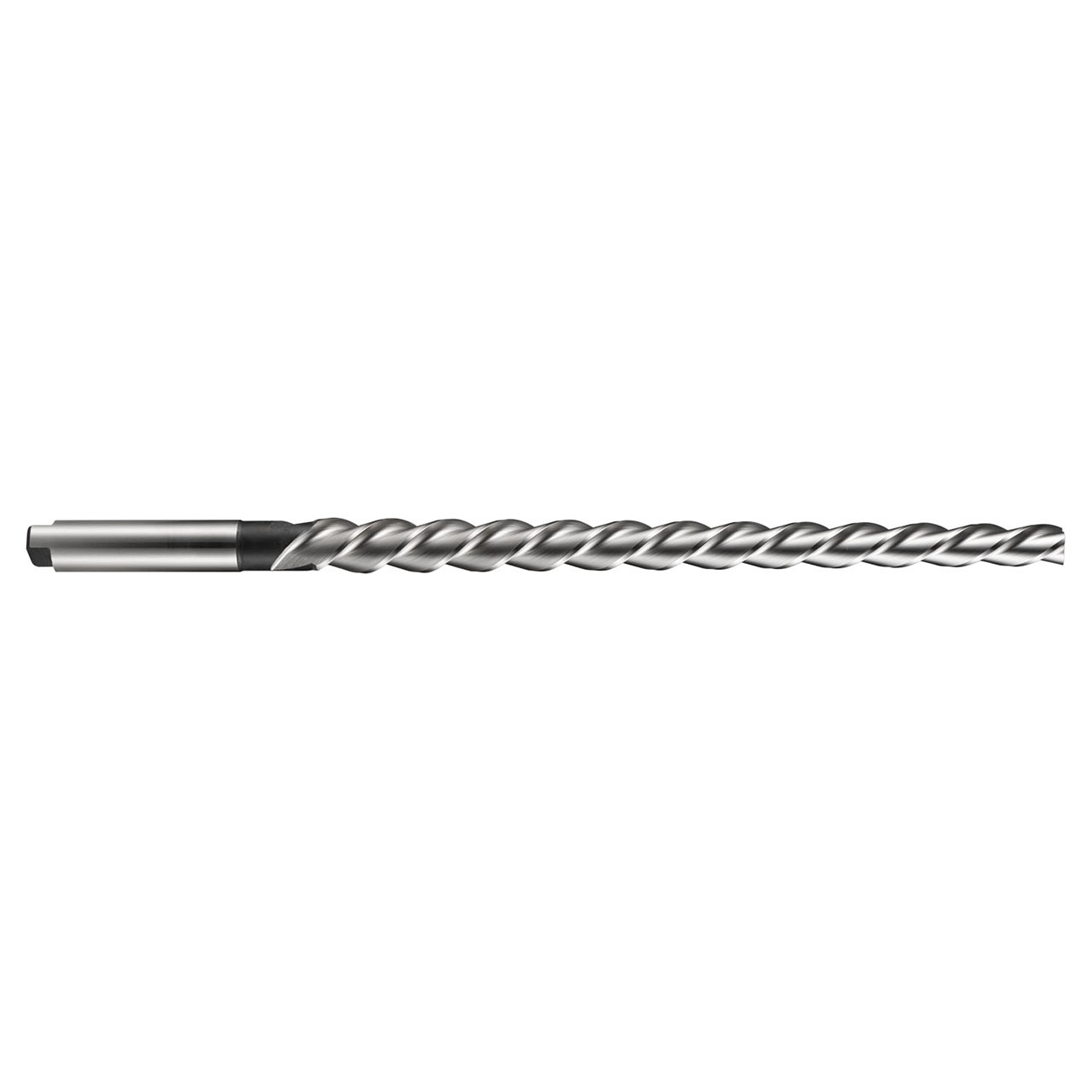

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank with tang, small end diameter 9.90mm with an overall length of 245mm, a flute length of 175mm and 13.40mm large end diameter, according to DIN 2179 standard for reaming pin holes with a 1:50 taper into which 10.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, cast aluminium.
Product Specifications
| EDP Number | 0053881 |
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.4921" |
| Overall Length (Inch) | 9.6457" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Flute Length (Inch):
8-17/64"
Flute Length (Decimal Inch):
8.2700"
Flute Length (mm):
210mm
Overall Length (Inch):
10-3/64"
Overall Length (Decimal Inch):
10.0394"
Overall Length (mm):
10.0400"
Material:
HSS
Finish/Coating:
Bright
