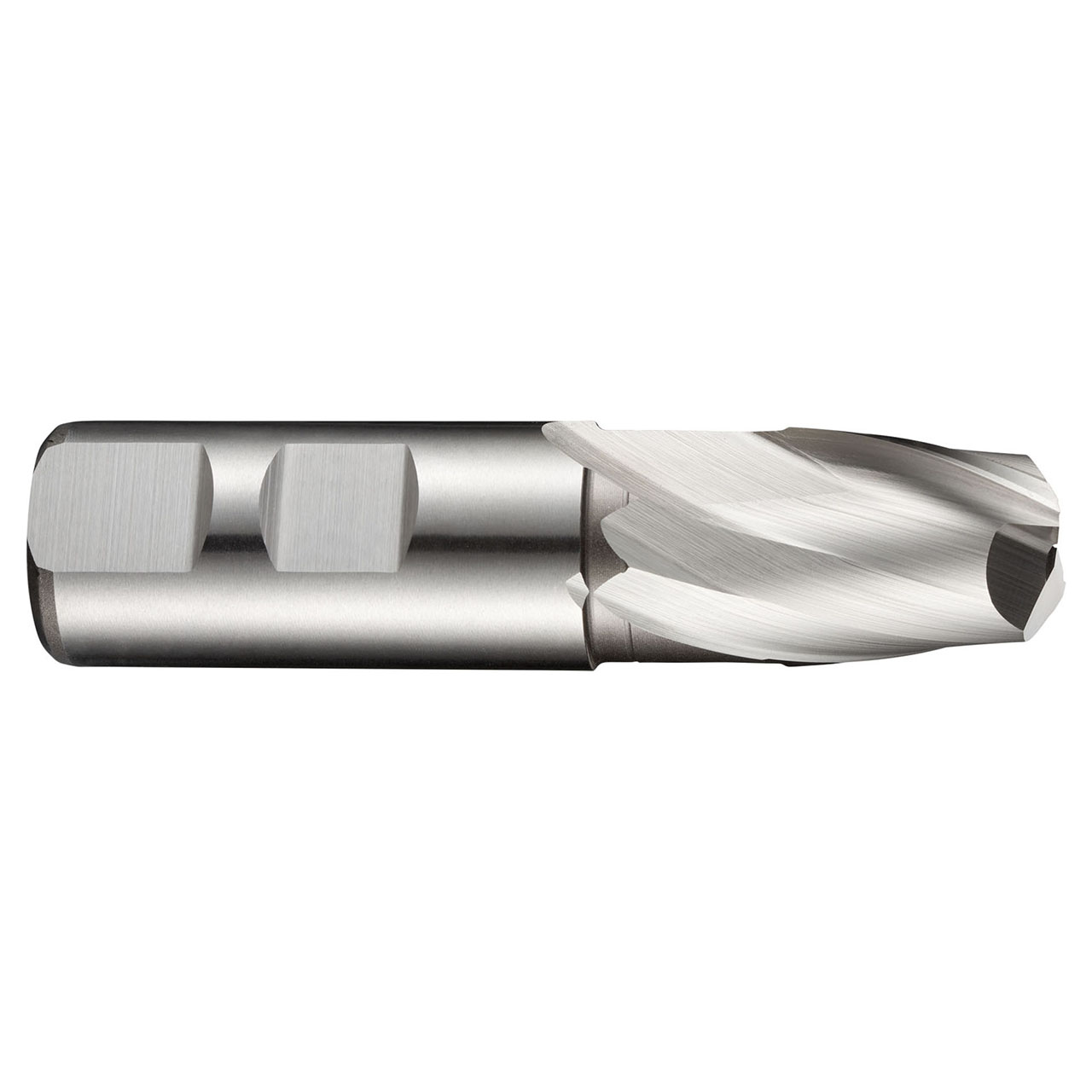

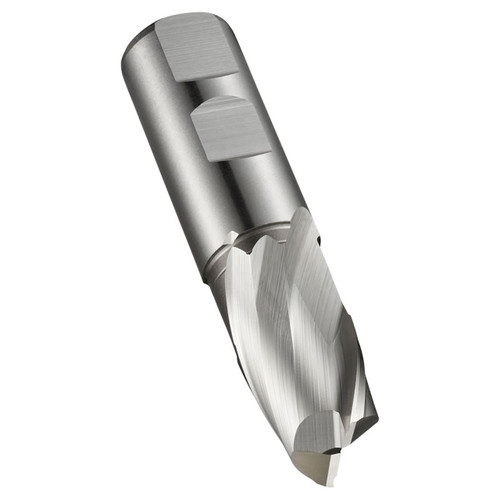

Dormer 5984079 | 28.00mm Drill Size x 25.00mm Shank x 26.00mm Maximum Depth of Cut x 102.00mm OAL x 30 Degree Helix Angle 2 Flute Bright Coated HSS-E-PM C110 Slot Drill

SKU: 10114131 Weight: 0.79 LBS Minimum Purchase: 1 unit
UPC: 7320760353363
$286.00 $163.02
(You save $122.98)
Shipping: Calculated at Checkout

About This Item

C110 2 flute milling cutters from Dormer can be used as slot drills. They are manufactured from powder metal high speed cobalt which gives superior performance and extended tool life. The bright finish prevents workpiece material from building up on the cutting edges so you get a cleaner, more accurate finish, whilst the short length flute design makes the tool very rigid and suitable for milling shallow slots. The accurate diameter means the tools are designed for milling standard keyway slots to a P9 tolerance. C110 milling cutters are very versatile and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron.


Product Specifications
Usable Length (mm)45.5mm
Max Depth of Cut (mm)26mm
Connection Diameter (Inch)0.9843"
Cutting Diameter (Inch)1.1024"
Overall Length (Inch)4.0157"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute2
Flute Helix Angle30
CoatingBright
Surface ColorBright Silver
Country of originCzech Republic
