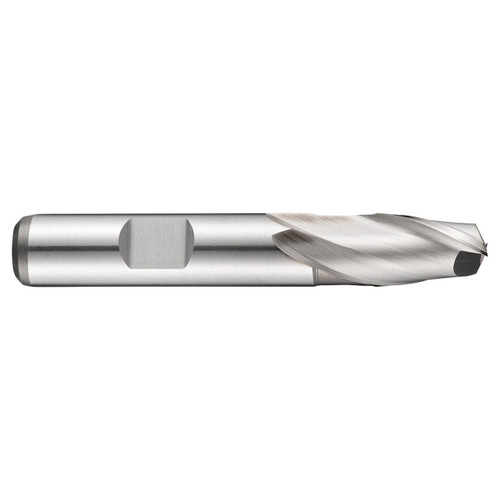

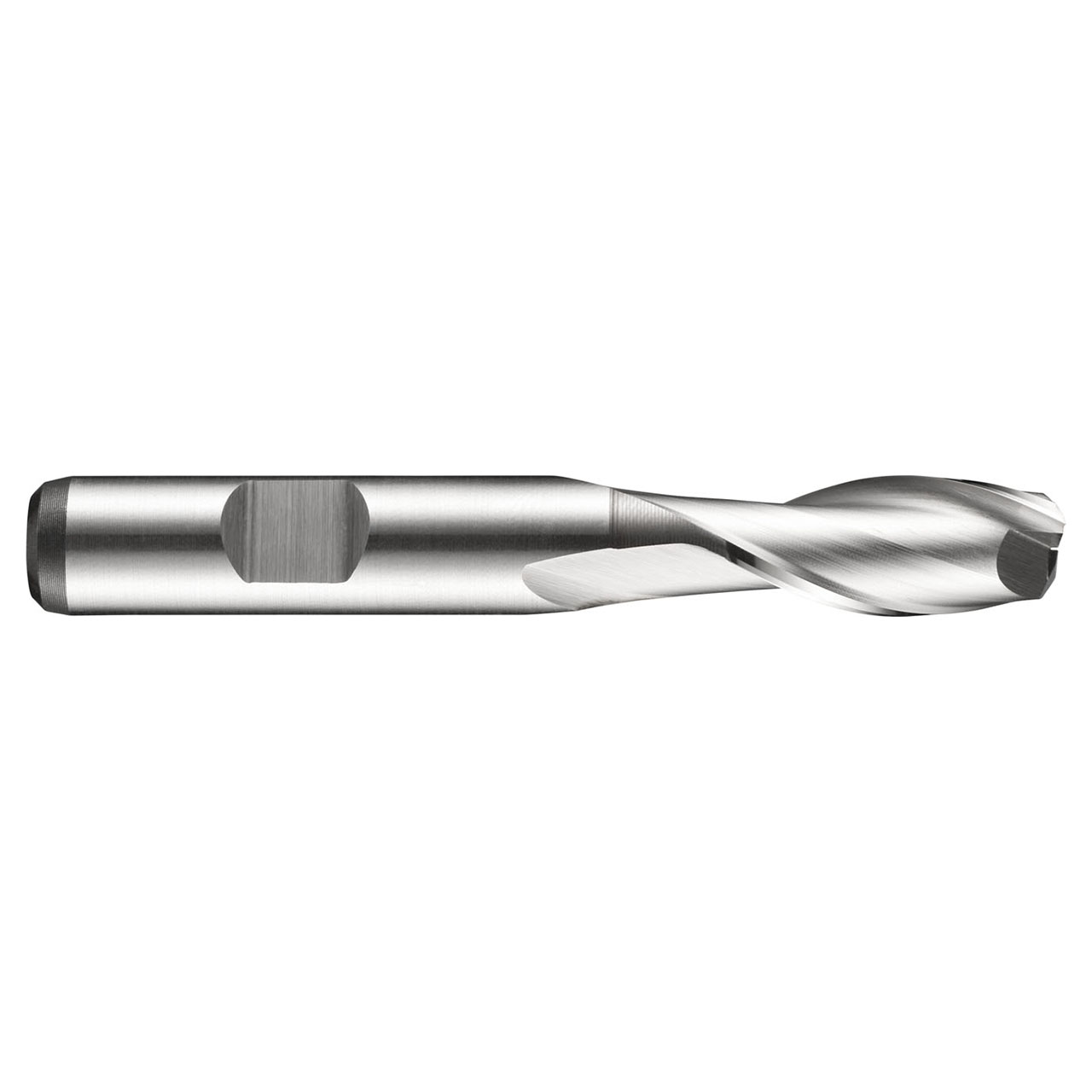

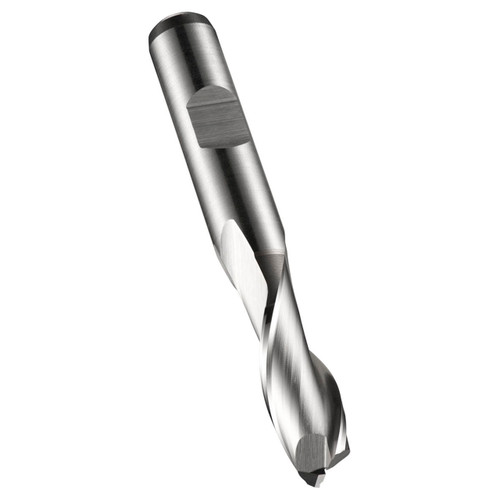

C123 milling cutters have 2 flutes with a medium length which provides high rigidity for milling standard slots, whilst the accurate diameter makes them perfect for milling standard keyway slots to a P9 tolerance. The powder metal high speed cobalt used in manufacture gives increased performance coupled with a longer tool life. C123 milling cutters have a bright finish which stops workpiece material from sticking to the cutting edges, so giving you a more accurate and cleaner finish. They can be used for plunging, ramping and profile milling in cast iron, steels and stainless steels, making them very versatile.
| Max Depth of Cut (mm) | 13mm |
| Connection Diameter (Inch) | 0.2362" |
| Cutting Diameter (Inch) | 0.2165" |
| Overall Length (Inch) | 2.2441" |
| Material Code | HSS-E-PM |
| Radial Rake Angle | 12 |
| No of Flute | 2 |
| Flute Helix Angle | 30 |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | Poland |
