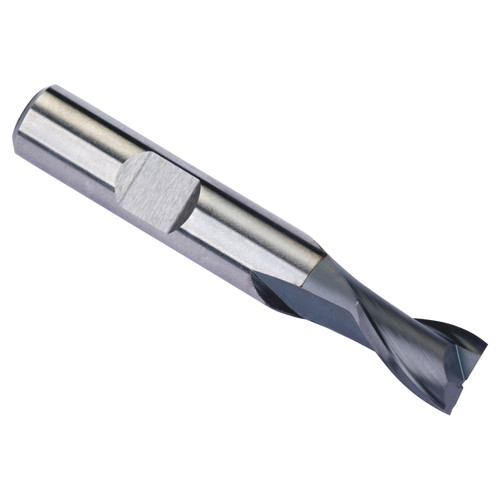

Dormer 5983882 | 3.00mm Drill Size x 6.00mm Shank x 5.00mm Maximum Depth of Cut x 49.00mm OAL x 30 Degree Helix Angle 2 Flute TiCN Coated HSS-E-PM C126 Slot Drill

SKU: 10114195 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC: 7320760354056
$57.20 $32.60
(You save $24.60)
Shipping: Calculated at Checkout

About This Item

C126 2 flute milling cutters will give you great performance coupled with a long tool life, being manufactured from powder metal high speed cobalt. They have a titanium carbo nitride coating which further increases the service life of the cutter and gives improved performance when machining hard and abrasive materials. The high rigidity achieved by the short length flute design makes C126 perfect for milling shallow slots, whilst the accurate diameter means they are also perfect for milling standard keyway slots to a P9 tolerance. For effective use in plunging, ramping and profile milling of steels, cast iron and stainless steels, there's no more versatile cutter than the C126.


Product Specifications
Max Depth of Cut (mm)5mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1181"
Overall Length (Inch)1.9291"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute2
Flute Helix Angle30
CoatingTiCN
Surface ColorPurple
Country of originCzech Republic
