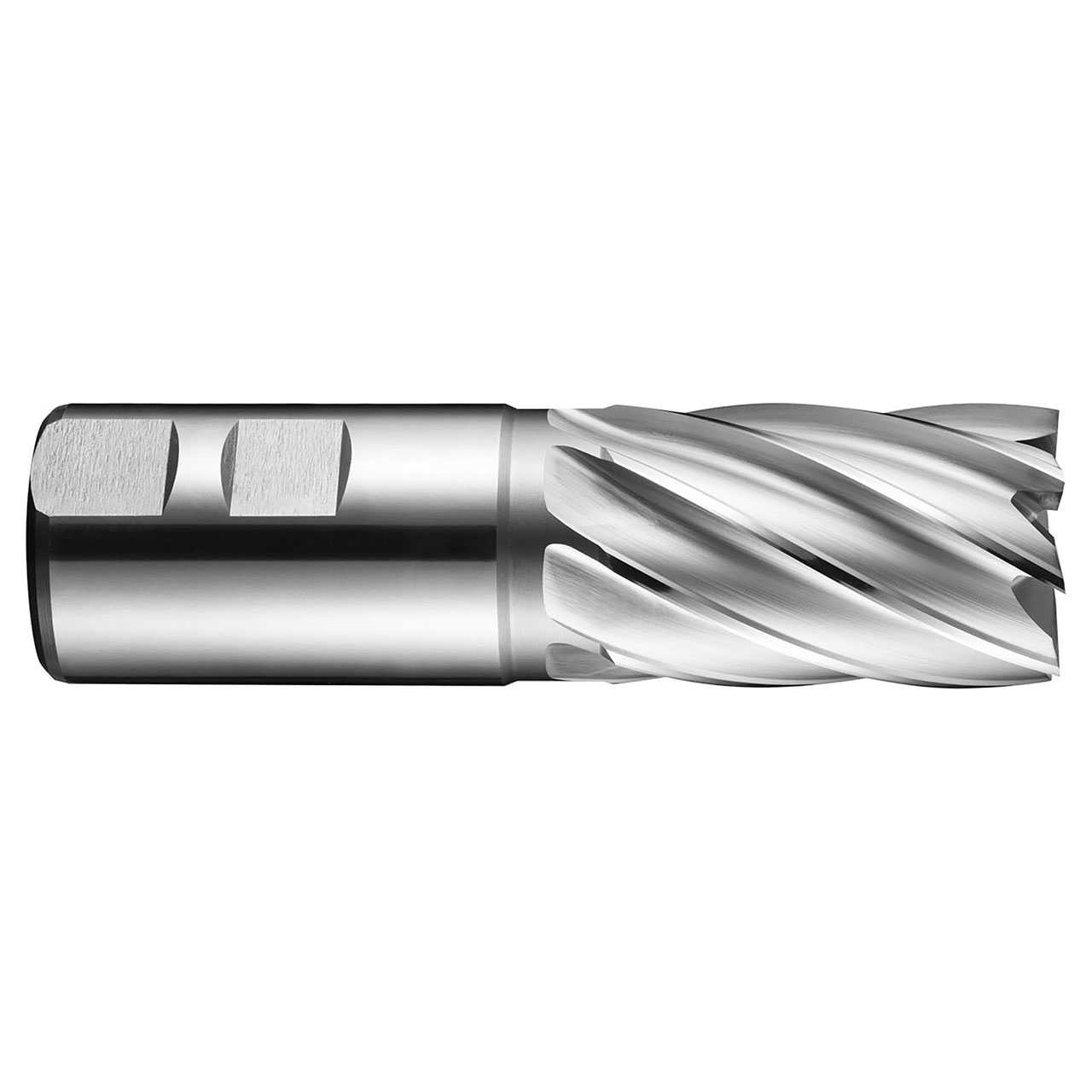

Dormer C24725.0 | 0.9843" Diameter x 4.7638" OAL 5 Flute Bright Coated Square End Mill

$148.77
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140049
Weight:
14.39 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

C247 4-flute milling cutters have a bright finish which prevents workpiece material from sticking to the cutting edge of the tool and so gives you a cleaner, more accurate finish whilst the strong design means the cutters can be used for both profile milling and slotting. Manufactured from powder metal high speed cobalt, C247 cutters will give you longer tool life with a great performance level. They have a medium length flute design which gives high rigidity for general profile milling applications. Suitable for plunging, profile milling and ramping in cast iron, steels and stainless steels, C247 milling cutters are very versatile products.


Product Specifications
Usable Length (mm)64.5mm
Max Depth of Cut (mm)45mm
Connection Diameter (Inch)0.9843"
Cutting Diameter (Inch)0.9843"
Overall Length (Inch)4.7638"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute5
Flute Helix Angle30
CoatingBright
Surface ColorBright Silver
