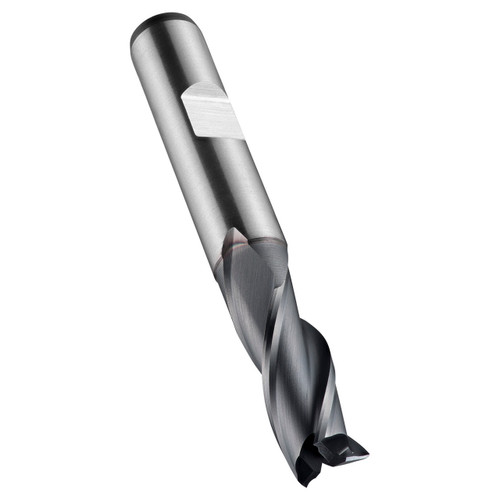

C352 milling cutters have 3 flutes with a medium length flute design, giving high rigidity for milling standard slots. With very accurate diameters, they are designed for milling standard keyway slots to a P9 tolerance. The Alcrona coating increases the service life of the tool and improves performance when milling difficult to machine materials. C352 milling cutters are manufactured from powder metal high speed cobalt which gives improved performance and further extends tool life. C352 milling cutters have many different uses including plunging, ramping and profile milling in steels, stainless steels and cast iron.
Max Depth of Cut (mm) | 19mm |
Connection Diameter (Inch) | 0.3937" |
Cutting Diameter (Inch) | 0.315" |
Overall Length (Inch) | 2.7165" |
Material Code | HSS-E-PM |
Radial Rake Angle | 12 |
No of Flute | 3 |
Flute Helix Angle | 30 |
Coating | ALCRONA |
Surface Color | Black-Deep Purple |
