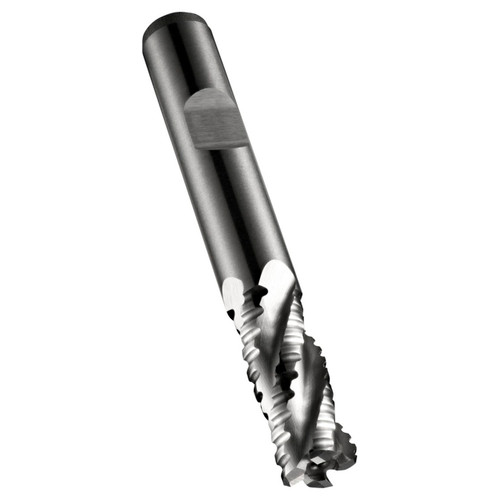

Dormer 5984954 | 10.00mm Diameter x 10.00mm Shank x 22.00mm Maximum Depth of Cut x 72.00mm OAL x 30 Degree Helix Angle 4 Flute Bright Coated HSS-EC400 Roughing End Mill

SKU: 25139394 Weight: 0.10 LBS Minimum Purchase: 1 unit
UPC: 7320760067888
$98.50 $56.15
(You save $42.35)
Shipping: Calculated at Checkout

About This Item

C400 4-flute milling cutters can be used for roughing during plunging, ramping and profile milling operations in stainless steels, steels and cast iron, with a medium length flute design which will break the chips for a more efficient roughing process. The 30 degree helix reduces vibration and improves performance in CNC machines whilst the bright finish prevents workpiece material from sticking to the cutting edge of the tool so you get a more accurate and cleaner result. C400 milling cutters are manufactured from high speed cobalt to give you a tool which last longer and performs better.


Product Specifications
Max Depth of Cut (mm)22mm
Connection Diameter (Inch)0.3937"
Cutting Diameter (Inch)0.3937"
Overall Length (Inch)2.8346"
Material CodeHSS-E
Radial Rake Angle12
No of Flute4
Flute Helix Angle30
CoatingBright
Surface ColorBright Silver
Country of originPoland
