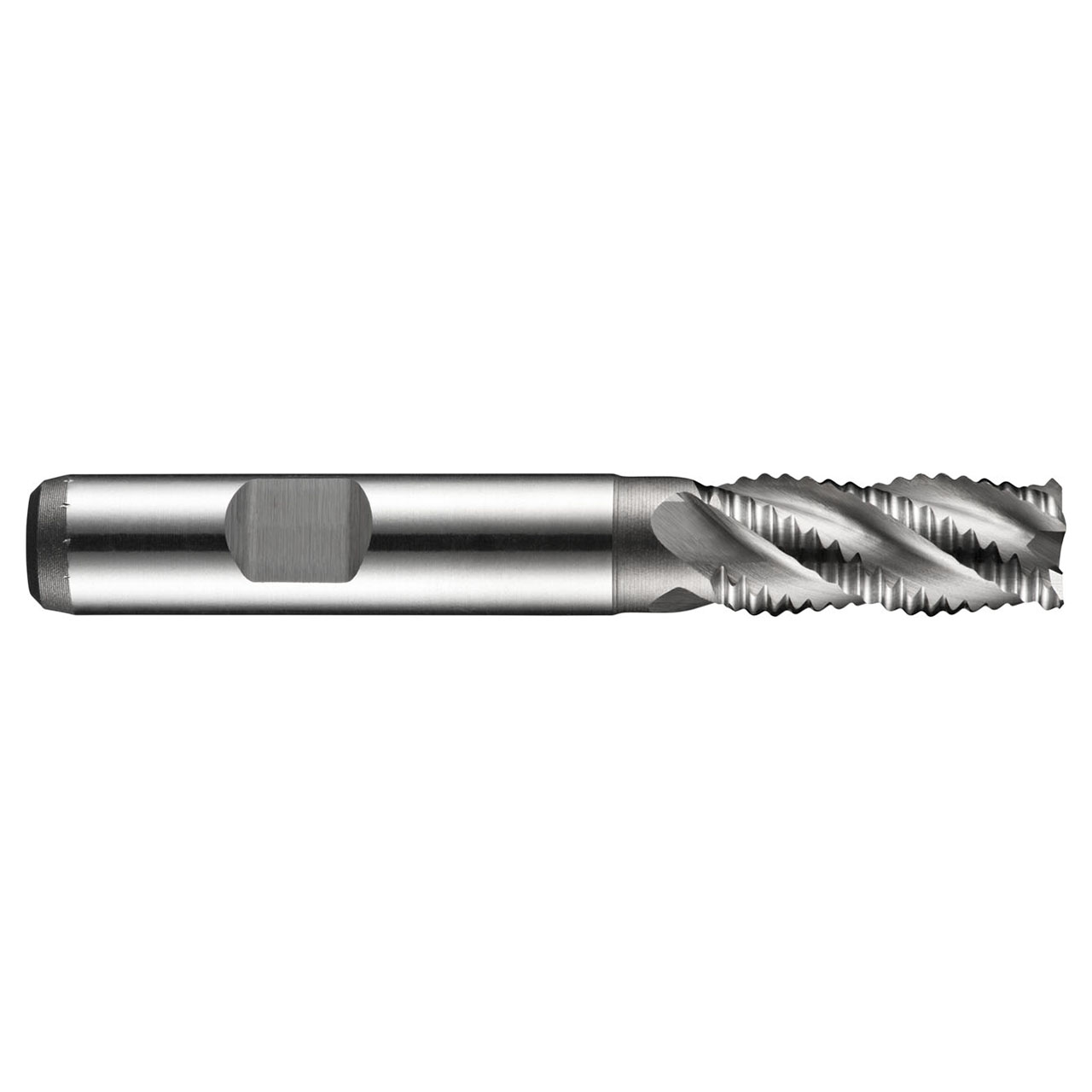

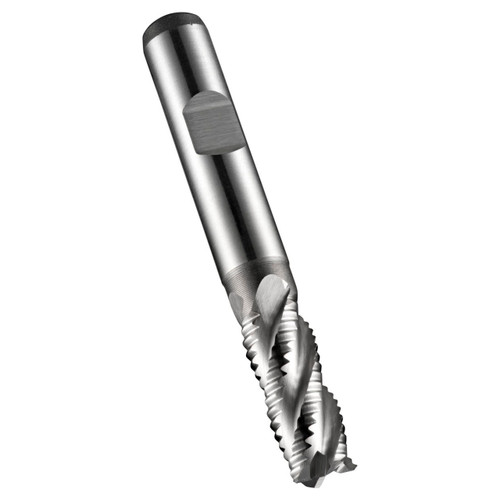

With a medium length flute with NRA profile to break chips for efficient roughing applications, the C407 4-flute milling cutter can be used for roughing when plunging, ramping and profile milling in steels, stainless steels and cast iron. Manufactured from powder metal high speed cobalt for longer tool life and better performance, the C407 milling cutter has a bright finish which stops workpiece material from sticking to the cutting edge of the tool, ensuring a clean and accurate result, whilst the 35 degree helix reduces vibration and improves performance when used in CNC machines.
| Usable Length (mm) | 31.5mm |
| Max Depth of Cut (mm) | 22mm |
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 2.8346" |
| Material Code | HSS-E-PM |
| Radial Rake Angle | 12 |
| No of Flute | 4 |
| Flute Helix Angle | 35 |
| Coating | Bright |
| Surface Color | Bright Silver |
