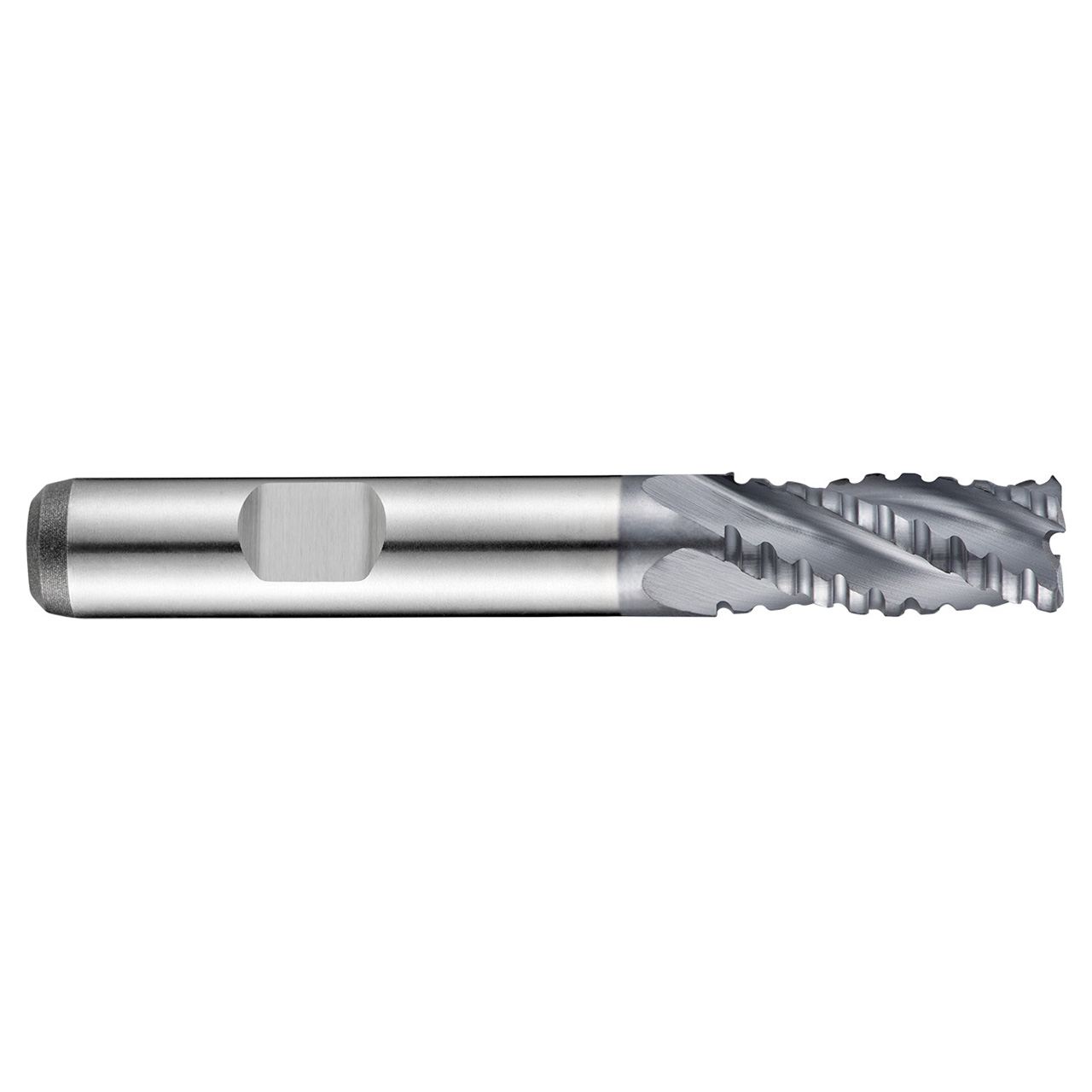

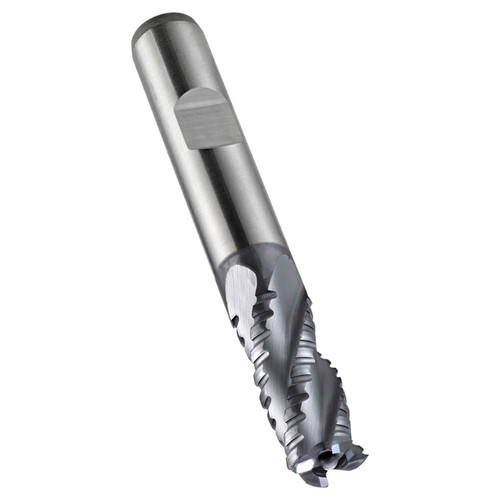

Dormer C41314.0 | 0.5512" Diameter x 3.2677" OAL 4 Flute TiCN Coated Roughing End Mill

$94.05
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139424
Weight:
2.82 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

C413 4-flute versatile milling cutters from Dormer can be used for roughing when plunging, ramping and profile milling in stainless steels, cast iron and steels. They have a medium length flute design with NF profile-with great chip breaking for efficient roughing applications, whilst the 30 degree helix reduces vibration and improves performance when used in CNC machines. C413 milling cutters are manufactured from high speed cobalt for great performance and long tool life, which is further enhanced by the titanium carbo nitride coating, which also improves performance when threading hard and abrasive materials.


Product Specifications
Usable Length (mm)37.5mm
Max Depth of Cut (mm)26mm
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.5512"
Overall Length (Inch)3.2677"
Material CodeHSS-E
Radial Rake Angle12
No of Flute4
Flute Helix Angle30
CoatingTiCN
Surface ColorPurple
