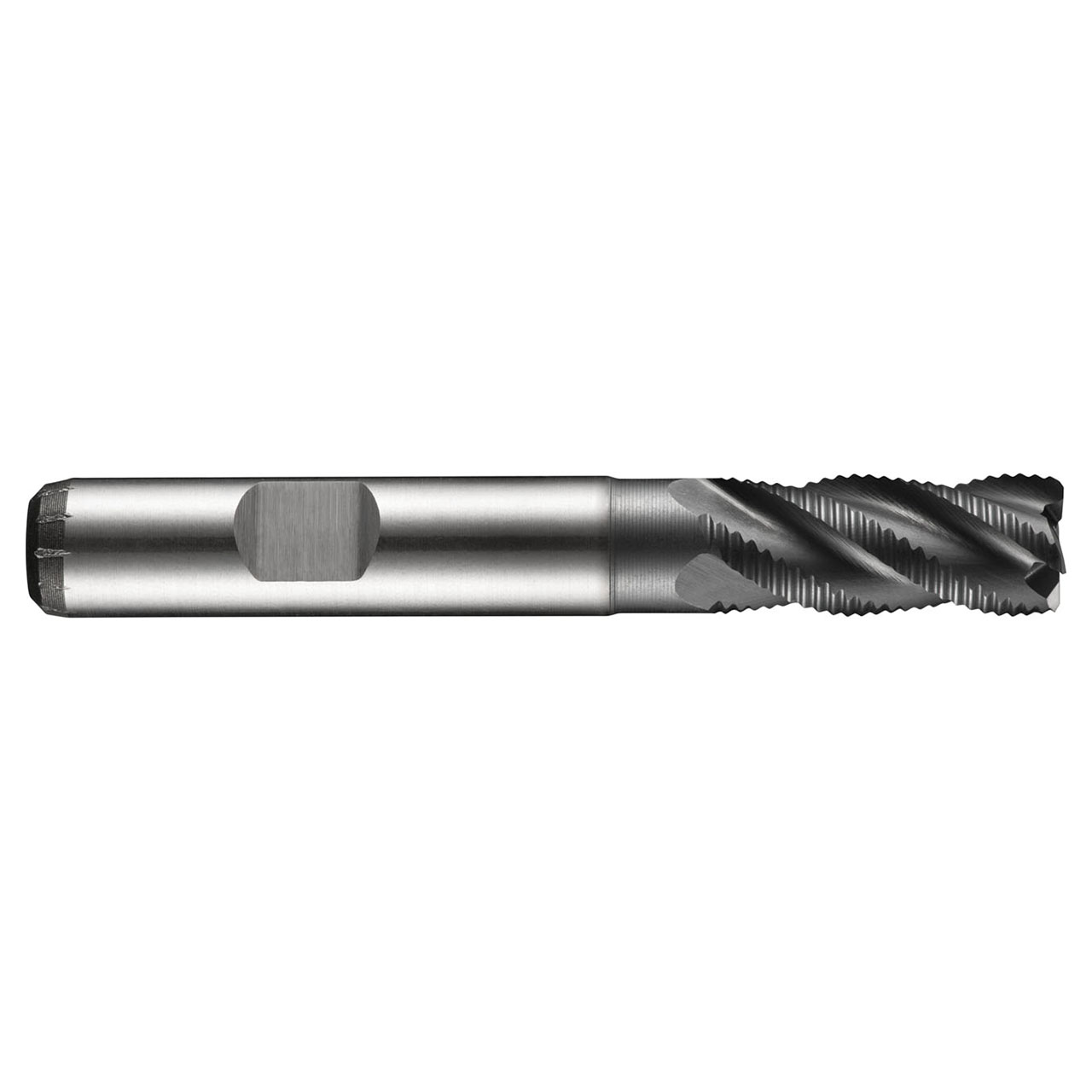

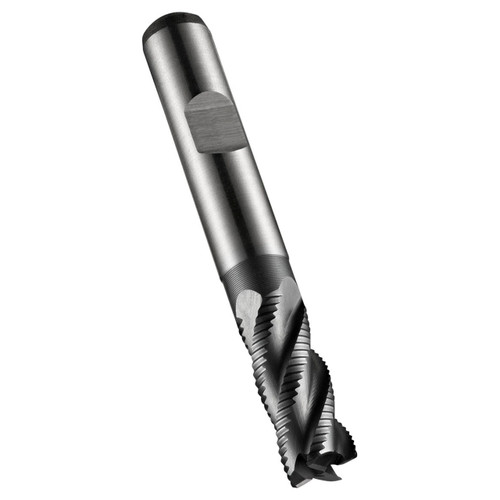

Dormer 5985118 | 15.00mm Diameter x 12.00mm Shank x 26.00mm Maximum Depth of Cut x 83.00mm OAL x 35 Degree Helix Angle 4 Flute ALCRONA Coated HSS-E-PMC428 Roughing End Mill

SKU: 25140026 Weight: 0.18 LBS Minimum Purchase: 1 unit
UPC: 7320760346785
$254.00 $144.78
(You save $109.22)
Shipping: Calculated at Checkout

About This Item

C428 4-flute milling cutters have an Alcrona coating which improves performance when milling difficult to machine materials and increases the life of the tool. The specially designed 35 degree helix reduces vibration and improves performance when used in CNC machines. Manufactured from powder metal high speed cobalt for superior performance and extended tool life, C428 cutters have a medium length flute with HRA profile to break chips for efficient roughing when plunging, ramping and profile milling steels, cast iron and stainless steels.


Product Specifications
Usable Length (mm)37.5mm
Max Depth of Cut (mm)26mm
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.5906"
Overall Length (Inch)3.2677"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute4
Flute Helix Angle35
CoatingALCRONA
Surface ColorBlack-Deep Purple
Country of originCzech Republic
