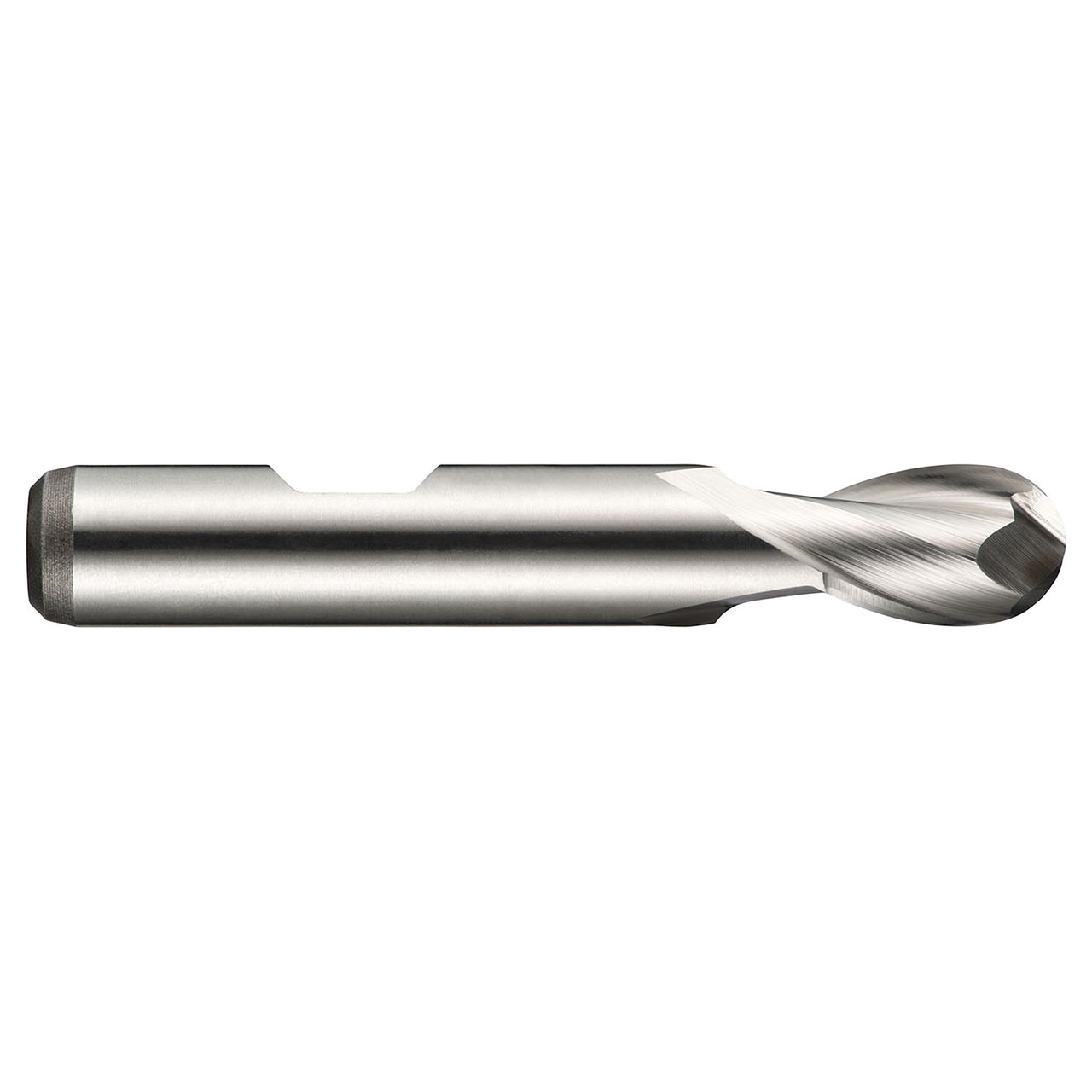

C500 2-flute ball nosed cutter have a geometry designed for contouring complex surfaces on CNC machines in steels, stainless steels and cast iron. The short 2-flute design provides high rigidity for increased strength and reduced vibration. With a bright finish to prevent workpiece material from sticking to the cutting edges of the tool, so giving you a cleaner, more accurate result, C500 ball nosed cutters are manufactured from high speed cobalt, giving you superior performance and longer tool life.
| Usable Length (mm) | 27.5mm |
| Max Depth of Cut (mm) | 16mm |
| Connection Diameter (Inch) | 0.4724" |
| Cutting Diameter (Inch) | 0.5906" |
| Overall Length (Inch) | 2.874" |
| Material Code | HSS-E |
| Radial Rake Angle | 12 |
| No of Flute | 2 |
| Flute Helix Angle | 30 |
| Corner Radius (mm) | 7.5mm |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | Poland |
