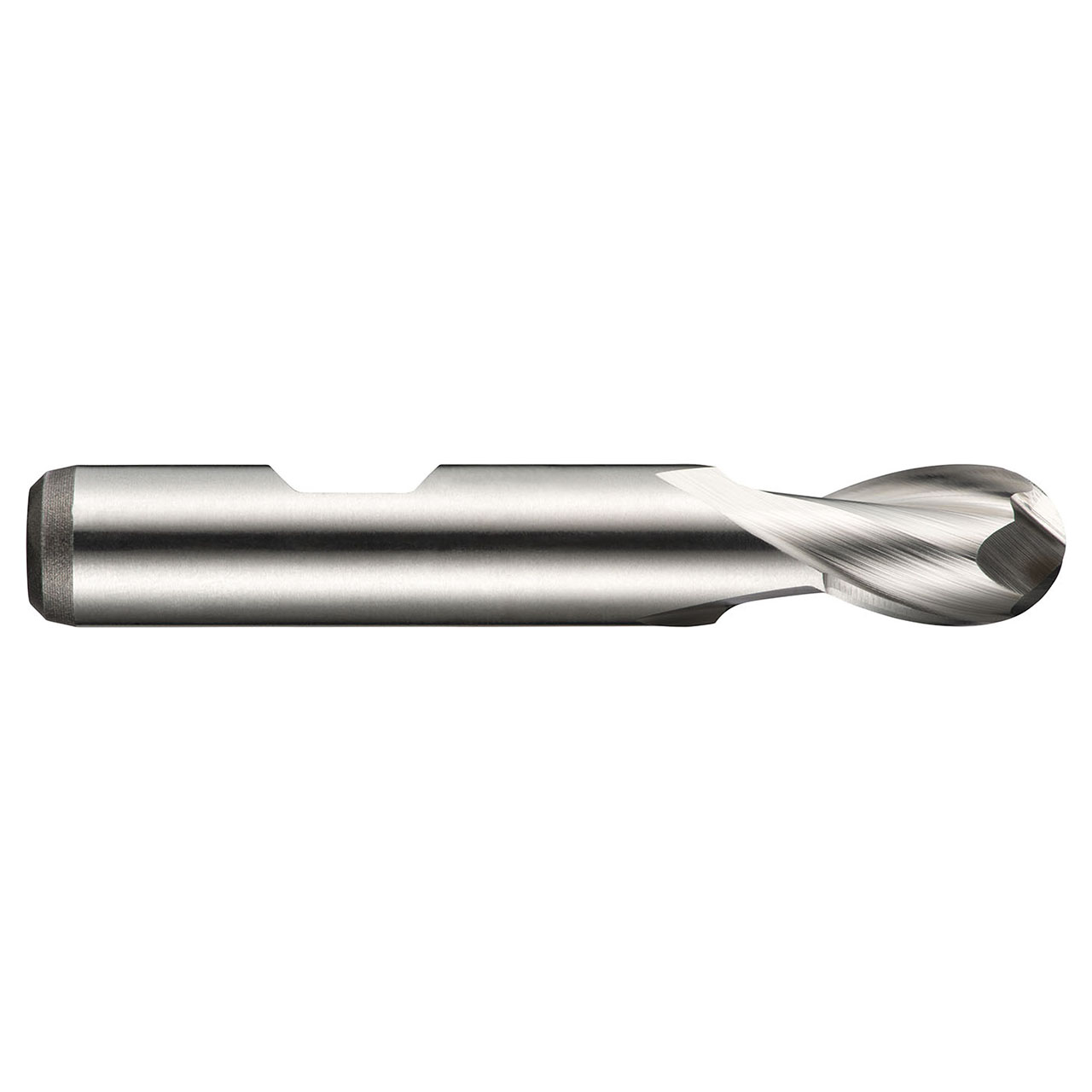

Dormer C5006.0 | 0.2362" Diameter x 2.0472" OAL 2 Flute Bright Coated Ball End Mill

$41.04
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139456
Weight:
0.46 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

C500 2-flute ball nosed cutter have a geometry designed for contouring complex surfaces on CNC machines in steels, stainless steels and cast iron. The short 2-flute design provides high rigidity for increased strength and reduced vibration. With a bright finish to prevent workpiece material from sticking to the cutting edges of the tool, so giving you a cleaner, more accurate result, C500 ball nosed cutters are manufactured from high speed cobalt, giving you superior performance and longer tool life.


Product Specifications
Max Depth of Cut (mm)8mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.2362"
Overall Length (Inch)2.0472"
Material CodeHSS-E
Radial Rake Angle12
No of Flute2
Flute Helix Angle30
Corner Radius (mm)3mm
CoatingBright
Surface ColorBright Silver
