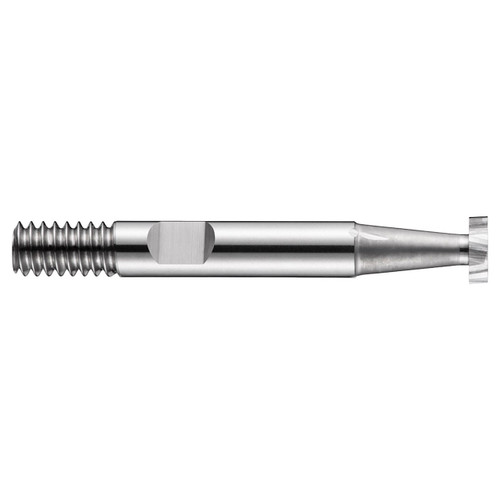

C822 Woodruff cutters from Dormer are very versatile tools and can be used for milling woodruff keys in steels, stainless steels, cast irons and aluminium. They are manufactured from high speed cobalt to give great performance coupled with excellent tool strength and wear resistance. The bright finish means you will get clean accurate results by preventing workpiece material from sticking to the cutting edges of the tool whilst the combination shank provides stable and accurate holding in all types of holders. C822 Woodruff cutters are manufactured to a Dormer Pramet standard and are suitable for milling Woodruff keys in spindles and shafts.
Max Depth of Cut (mm) | 3mm |
Connection Diameter (Inch) | 0.2362" |
Cutting Diameter (Inch) | 0.4134" |
Overall Length (Inch) | 1.9685" |
Material Code | HSS-E |
Radial Rake Angle | 10 |
No of Flute | 8 |
Flute Helix Angle | 10 |
Coating | Bright |
Surface Color | Bright Silver |
