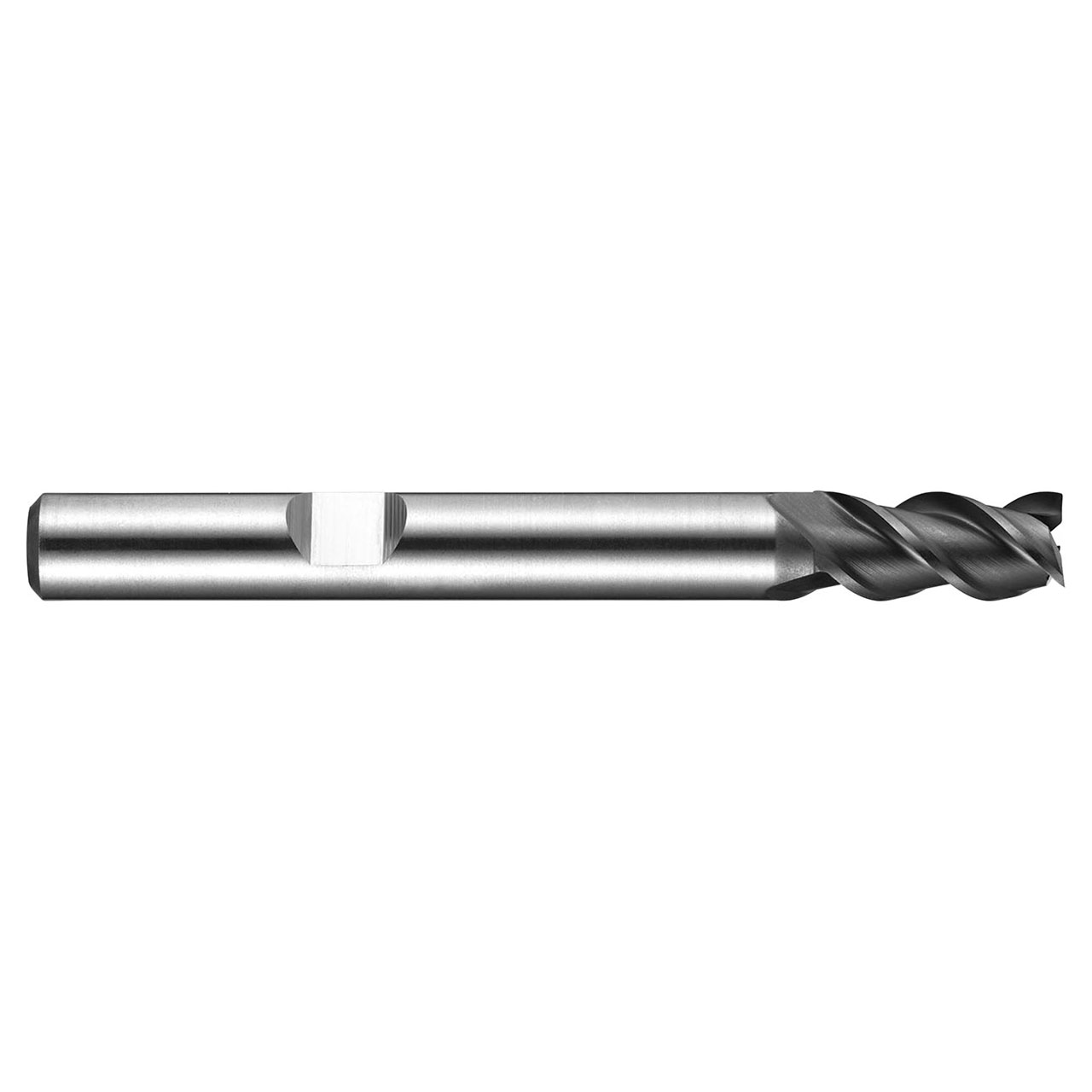

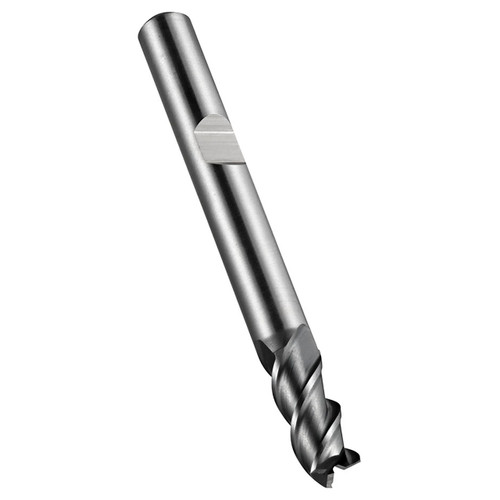

Dormer 5985635 | 10.00mm Diameter x 10.00mm Shank x 22.00mm Maximum Depth of Cut x 72.00mm OAL x 45 Degree Helix Angle 4 Flute ALCRONA Coated HSS-E-PMC907 Square End Mill

SKU: 25139559 Weight: 0.10 LBS Minimum Purchase: 1 unit
UPC: 7320760075821
$129.00 $73.53
(You save $55.47)
Shipping: Calculated at Checkout

About This Item

C907 4- flute end mills have a special Alcrona coating which in.]creases the service life of the tool and improves performance milling materials which are difficult to machine. Thanks to the 45 degree helix, you will see great performance when machining heat resistant materials on CNC machines, whilst the medium length flute design gives greater rigidity for general milling applications. C907 end mills can be used for ramping, profile milling and plunging in steels, stainless steels and cast iron.


Product Specifications
Usable Length (mm)31.5mm
Max Depth of Cut (mm)22mm
Connection Diameter (Inch)0.3937"
Cutting Diameter (Inch)0.3937"
Overall Length (Inch)2.8346"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute4
Flute Helix Angle45
CoatingALCRONA
Surface ColorBlack-Deep Purple
Country of originPoland
