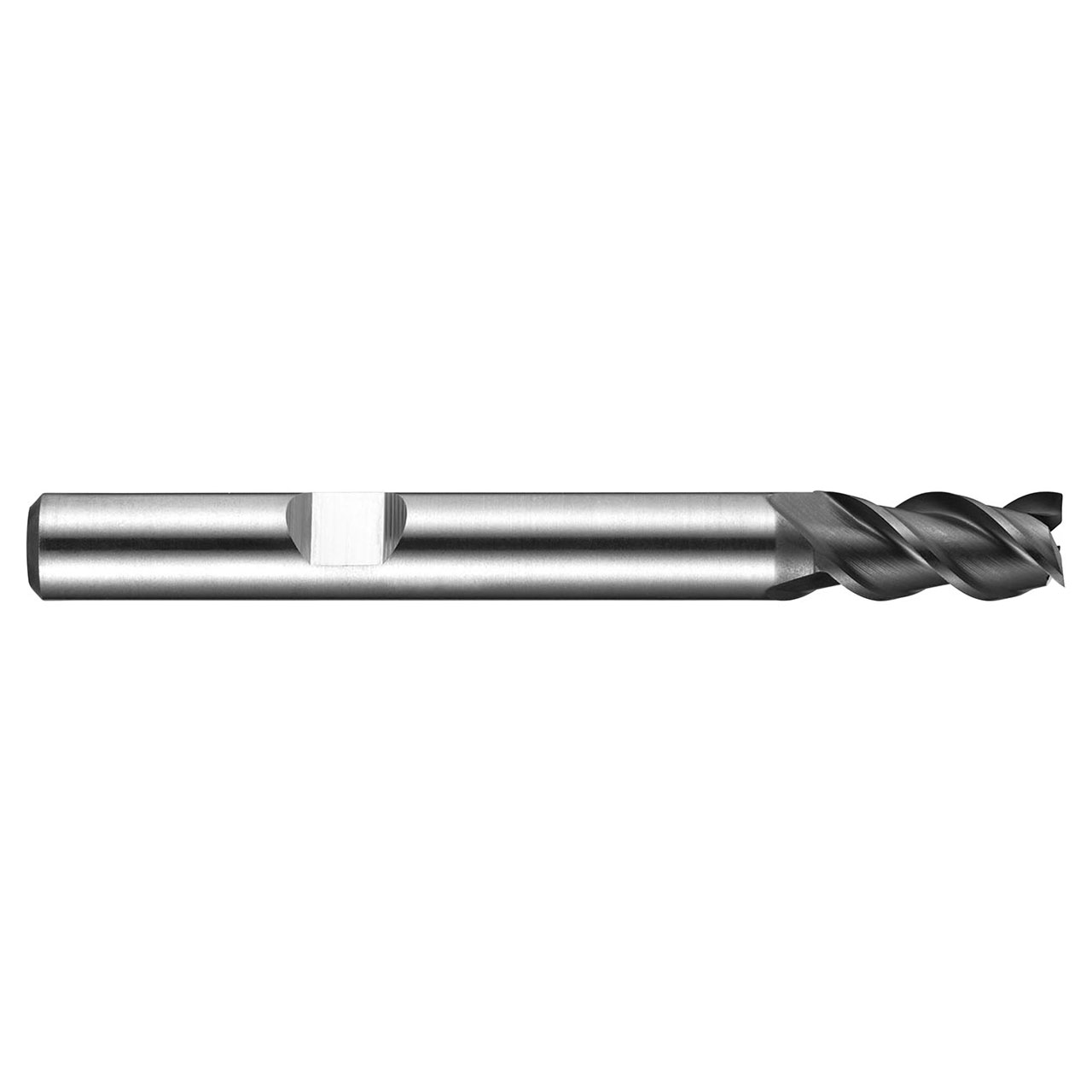

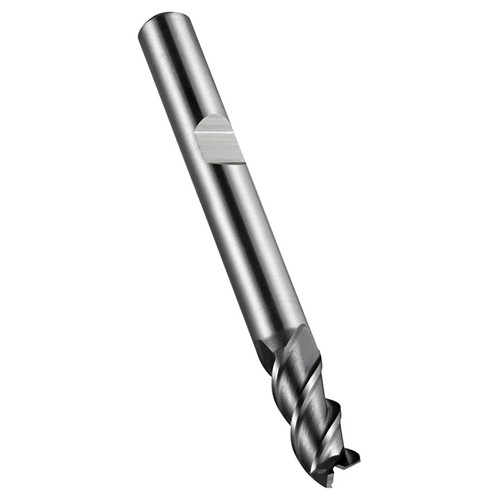

Dormer C90718.0 | 0.7087" Diameter x 3.622" OAL 4 Flute ALCRONA Coated Square End Mill

$119.13
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139563
UPC:
7320760075869
Weight:
4.87 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

C907 4- flute end mills have a special Alcrona coating which in.]creases the service life of the tool and improves performance milling materials which are difficult to machine. Thanks to the 45 degree helix, you will see great performance when machining heat resistant materials on CNC machines, whilst the medium length flute design gives greater rigidity for general milling applications. C907 end mills can be used for ramping, profile milling and plunging in steels, stainless steels and cast iron.


Product Specifications
Usable Length (mm)43.5mm
Max Depth of Cut (mm)32mm
Connection Diameter (Inch)0.6299"
Cutting Diameter (Inch)0.7087"
Overall Length (Inch)3.622"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute4
Flute Helix Angle45
CoatingALCRONA
Surface ColorBlack-Deep Purple
