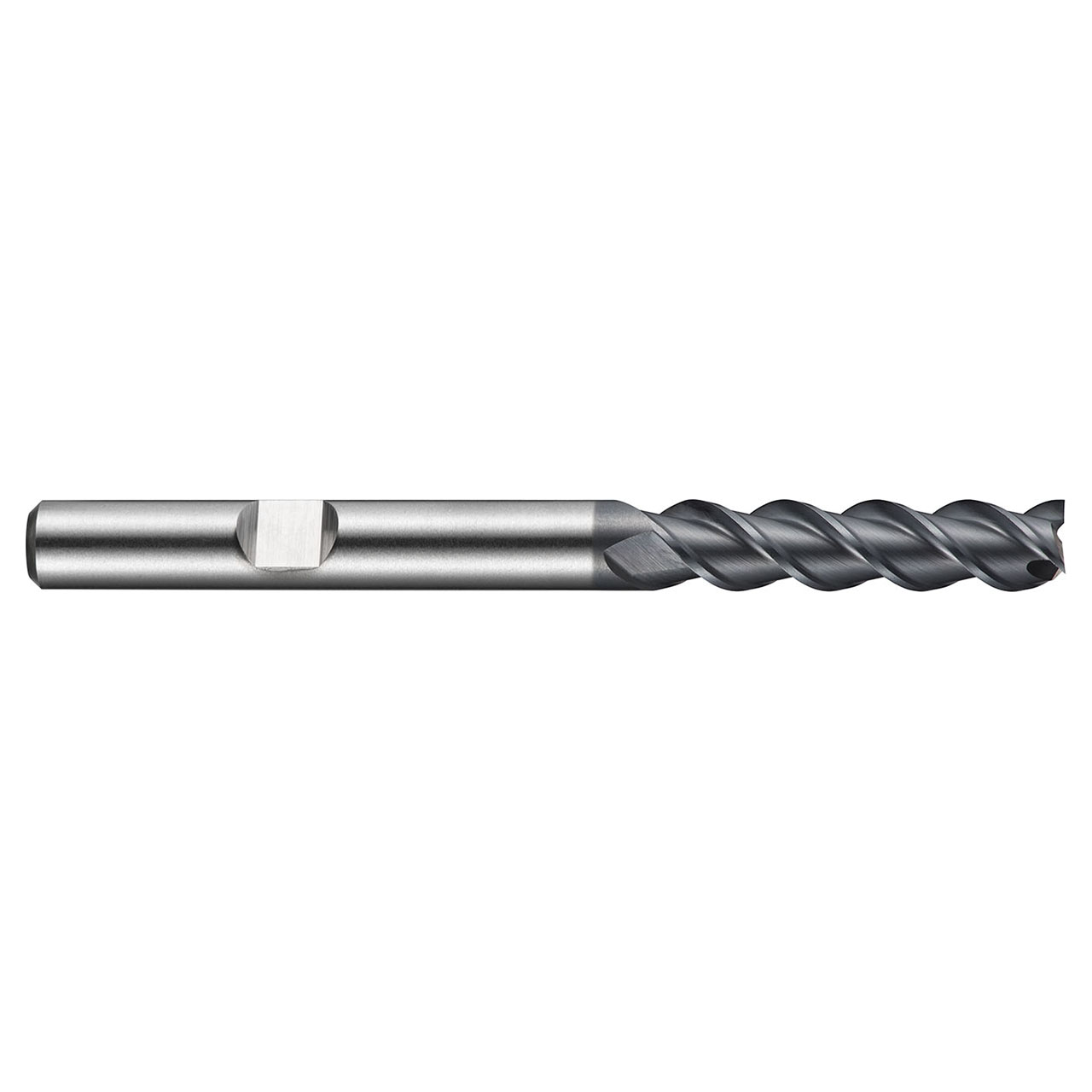

Dormer 5985748 | 6.00mm Diameter x 6.00mm Shank x 24.00mm Maximum Depth of Cut x 68.00mm OAL x 45 Degree Helix Angle 3 Flute ALCRONA Coated HSS-E-PMC920 Square End Mill

SKU: 25139595 Weight: 0.03 LBS Minimum Purchase: 1 unit
UPC: 7320760076217
$118.00 $67.26
(You save $50.74)
Shipping: Calculated at Checkout

About This Item

C920 4-flute end mills are manufactured from powder metal high speed cobalt which gives you extended tool life coupled with great performance, whilst the special Alcrona coating further extends the life of the tool and gives improved performance when milling difficult to machine materials. With a long series flute for high rigidity finishing deep profiles, C920 end mills can be used or plunging, ramping and profile milling in steels, stainless steels and cast iron. Finally, high performance when machining heat resistant materials on CNC machines is achieved, thanks to the 45 degree helix angle.


Product Specifications
Max Depth of Cut (mm)24mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.2362"
Overall Length (Inch)2.6772"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute3
Flute Helix Angle45
CoatingALCRONA
Surface ColorBlack-Deep Purple
Country of originPoland
