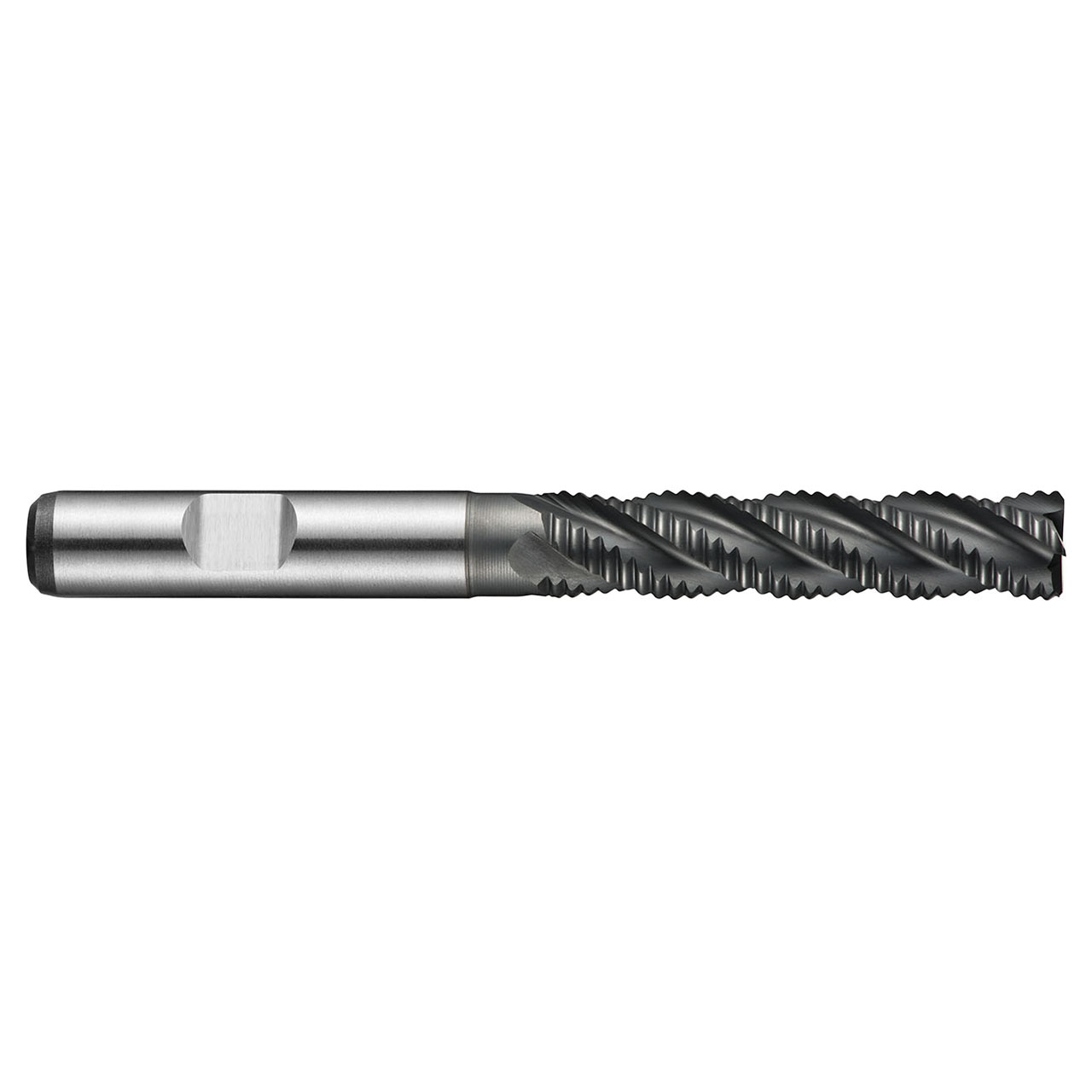

Dormer C94820.0 | 0.7874" Diameter x 5.5512" OAL 4 Flute ALCRONA Coated Roughing End Mill

$236.55
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139692
Weight:
10.02 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Dormer's C948 milling cutters can be used for roughing when plunging, ramping and profile milling in steels, stainless steels and cast iron. They are manufactured from powder metal high speed steel for greatly improved performance and extended tool life, whilst the Alcrona coating further increases the service life of the tool and improves performance when milling difficult to machine materials. C948 roughing cutters have a 35 degree helix which reduces vibration and improves performance when used in CNC machines, whilst the long series flute design with NRA profile is designed to break chips for efficient roughing of deep profiles.


Product Specifications
Usable Length (mm)90.5mm
Max Depth of Cut (mm)75mm
Connection Diameter (Inch)0.7874"
Cutting Diameter (Inch)0.7874"
Overall Length (Inch)5.5512"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute4
Flute Helix Angle35
CoatingALCRONA
Surface ColorBlack-Deep Purple
