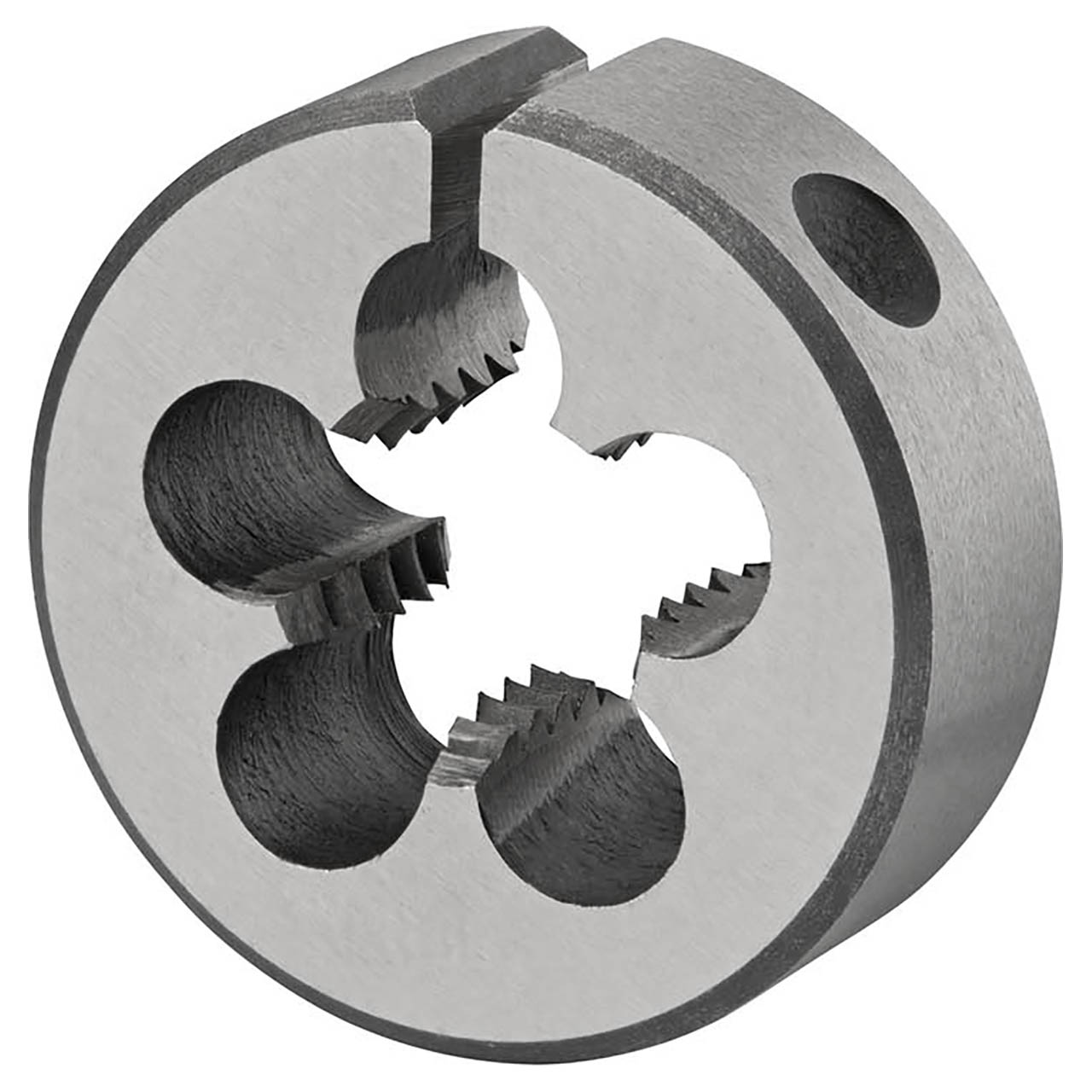

Adjustable circular split die, for ISO-Metric Fine thread M16 with 1.00mm pitch, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.15mm, dimensions according to BS 1127:1950 standard with 1.1/2" outside diameter and 1/2" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Specifications
| Body Diameter (Inch) | 1.5" |
| Overall Length (Inch) | 0.5" |
| Thread Diameter (mm) | 16mm |
| Thread Pitch (mm) | 1mm |
| Thread Diameter Size | 16 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | MF-Metric fine |
