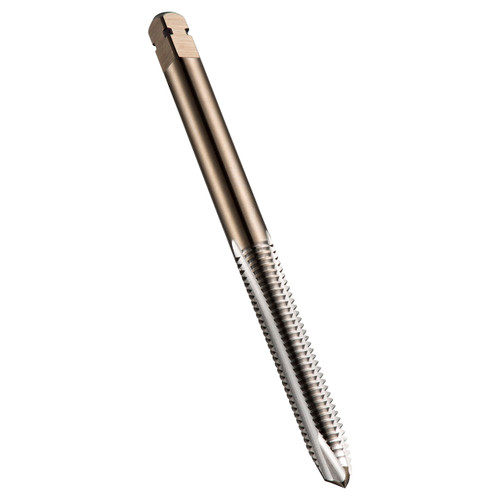

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3mm shank and 5.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.248" |
| Overall Length (Inch) | 2.5984" |
| Clamping Width (mm) | 5mm |
| No of Flutes | 3 |
| Usable Length (mm) | 26mm |
| Thread Pitch (mm) | 1mm |
| Clamping Length | 8 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 13mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
