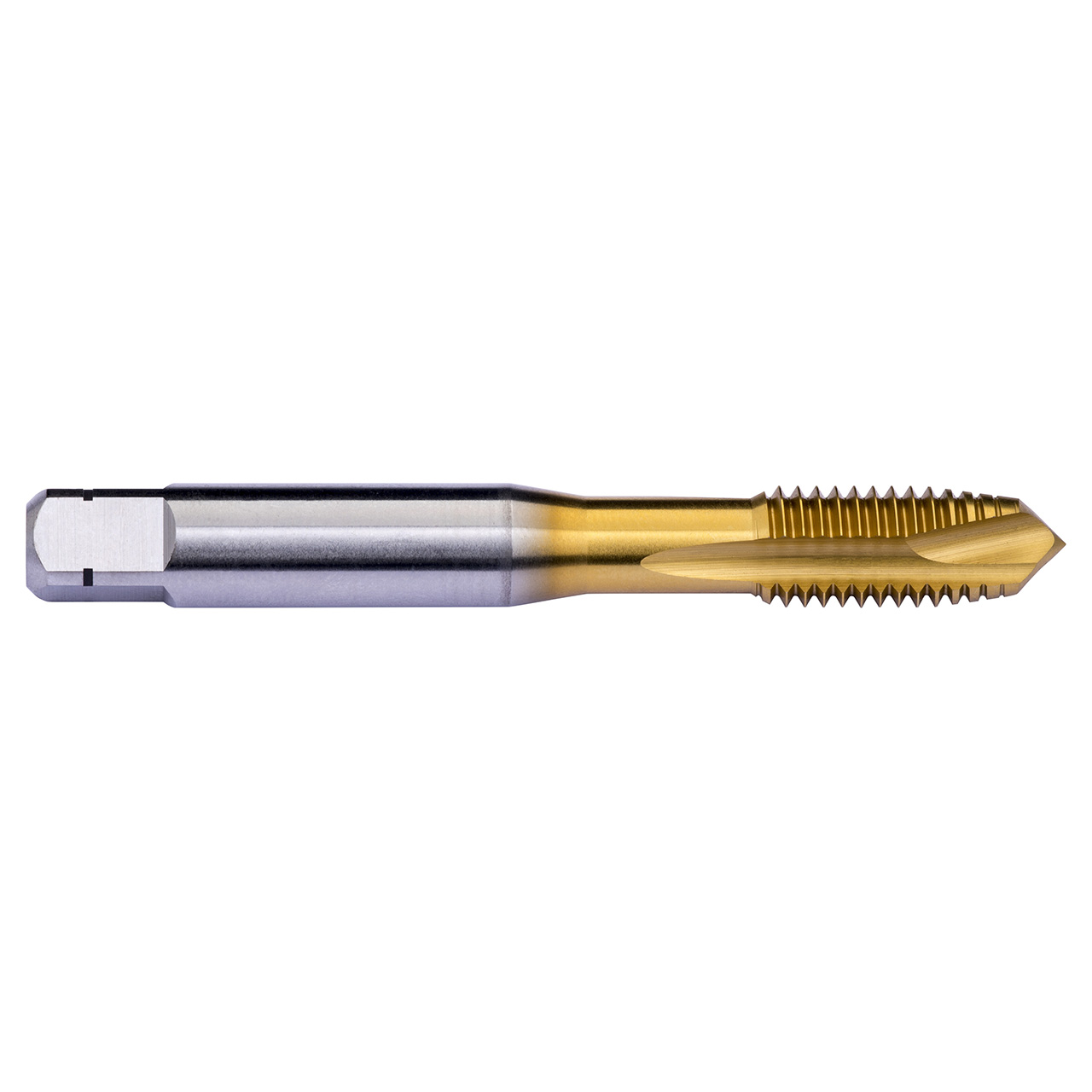

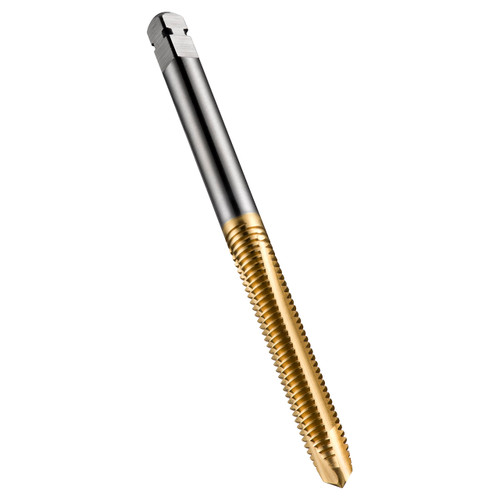

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 2.8346" |
| Clamping Width (mm) | 6.3mm |
| No of Flutes | 3 |
| Usable Length (mm) | 29mm |
| Thread Pitch (mm) | 1.25mm |
| Clamping Length | 9 |
| Thread Diameter Size | 8 |
| Threading Length (mm) | 16mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | TiN |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Gold |
| Thread Form | M-Metric coarse |
