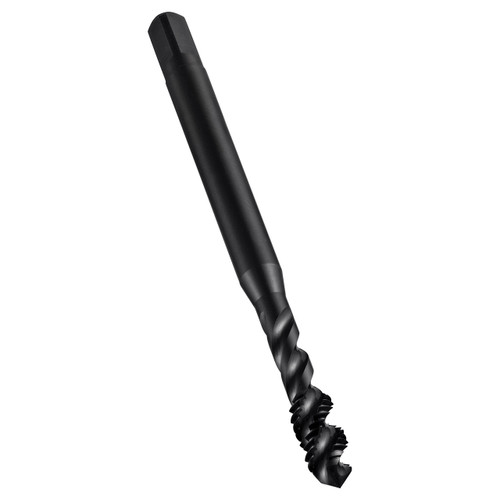

Dormer E003M10 | 0.3937" Diameter x 3.1496" OAL 3 Flute Steam Tempered Coated Spiral Flute Tap

$26.26
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15024236
UPC:
7320760568064
Weight:
1.46 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M10 with 1.50mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 10.0mm shank and 8.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.


Product Specifications
Connection Diameter (Inch)0.3937"
Overall Length (Inch)3.1496"
Clamping Width (mm)8mm
No of Flutes3
Flute Helix Angle45
Usable Length (mm)35mm
Thread Pitch (mm)1.5mm
Clamping Length11
Thread Diameter Size10
Threading Length (mm)15mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormM-Metric coarse
